SKY82896 Mobile Phone IC
The SKY82896 Mobile Phone IC is a highly specialized Integrated Circuit (IC) manufactured by Skyworks Solutions. While sometimes colloquially referred to as a “Power IC” or “Power Amplifier” in the mobile repair market, its technical classification is a Three-Channel Boost LED Driver with I2C Interface. SKY82896 Mobile Phone IC
It is primarily used in smartphones (notably the Samsung Galaxy Note 4 and similar era devices) to manage the power requirements of the display’s backlight. Below is a comprehensive breakdown of its technical specifications, features, and operational parameters. SKY82896 Mobile Phone IC
1. Technical Specification Summary
The following table outlines the core electrical and physical parameters of the SKY82896.
| Parameter | Specification |
| Manufacturer | Skyworks Solutions, Inc. |
| IC Function | Boost (Step-up) LED Driver |
| Number of Channels | 3 Channels |
| LEDs per Channel | Up to 9 LEDs in series (27 total) |
| Input Voltage ($V_{IN}$) | 2.5 V to 5.5 V |
| Output Voltage ($V_{OUT}$) | Up to 30 V |
| Max LED Current | 30 mA per channel |
| Switching Frequency | 900 kHz |
| Peak Efficiency | 89% – 90% |
| Control Interface | I2C, Direct PWM (DPWM), Analog PWM (APWM) |
| Dimming Resolution | 10-bit (Up to 20-bit with mixed mode) |
| Quiescent Current ($I_Q$) | ~1000 µA (Typical) |
| Shutdown Current | < 1 µA |
| Package Type | 16-bump WLCSP (Wafer Level Chip Scale Package) |
| Package Dimensions | 1.956 mm x 1.906 mm x 0.65 mm |
2. Advanced Features and Capabilities
Dimming Technology
The SKY82896 is designed for high-end display systems requiring smooth transitions and precise brightness control. It supports three distinct dimming methods:
-
Direct PWM (DPWM): Frequency and ON duty are controlled directly by the input signal. It supports frequencies from 100 Hz to 50 kHz. SKY82896 Mobile Phone IC
-
Analog PWM (APWM): Converts the duty cycle of the input PWM signal into a regulated DC LED current. This is ideal for reducing “flicker” at low brightness levels. SKY82896 Mobile Phone IC
-
I2C Dimming: Allows the smartphone’s processor to communicate directly with the IC to set brightness via internal registers. SKY82896 Mobile Phone IC
Protection Mechanisms
To ensure the longevity of the mobile device’s display and motherboard, the IC includes several “hardwired” safety features: SKY82896 Mobile Phone IC
-
Over-Voltage Protection (OVP): Programmable limit to prevent voltage spikes from damaging the LED strings. SKY82896 Mobile Phone IC
-
Over-Current Protection (OCP): Protects the boost converter from excessive current draw. SKY82896 Mobile Phone IC
-
Over-Temperature Protection (OTP): Automatically shuts down or throttles the IC if it exceeds safe thermal limits. SKY82896 Mobile Phone IC
-
Open/Short LED Protection: Detects if an LED string has failed or short-circuited, preventing power waste or further damage. SKY82896 Mobile Phone IC
3. Physical Layout and Pin Configuration

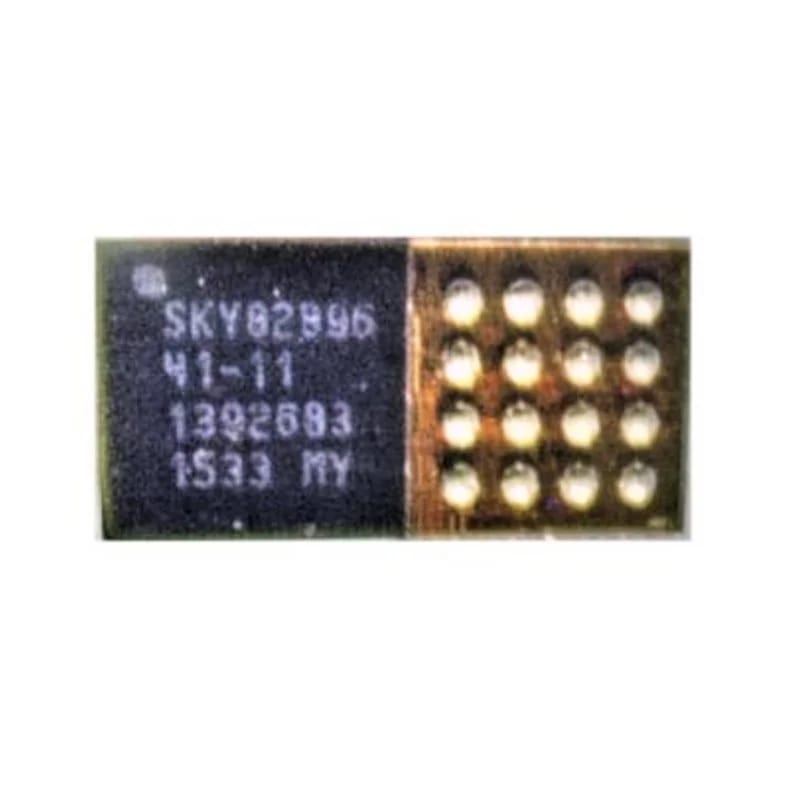

The SKY82896 uses a WLCSP-16 package. This is a “bumped” die where the solder balls are attached directly to the silicon, making it extremely compact but requiring professional-grade hot-air stations for replacement.
| Pin Type | Description |
| Power Input ($V_{IN}$) | Main power supply from the battery (typically 3.7V – 4.2V). |
| Ground (GND) | Reference ground for the IC logic and power stages. |
| Inductor ($LX$) | The switching node connected to the external boost inductor. |
| Control ($SDA/SCL$) | I2C Data and Clock lines for software brightness control. |
| PWM Input | External signal for pulse-width modulation dimming. |
| LED Channels (1-3) | Current sinks for the three LED strings. |
4. Common Applications in Mobile Repair
In the repair industry, this IC is frequently sought for the Samsung Galaxy Note 4 (T3777) and other Snapdragon-based devices. Technicians typically replace this chip when the phone exhibits the following symptoms:
-
No Backlight: The phone powers on and shows an image (visible under a bright light), but the screen remains dark.
-
Flickering Screen: Unstable current regulation causing the display brightness to oscillate.
-
Overheating near the Display Connector: Indicates a short circuit within the LED driver or its associated capacitors.
-
Partial Backlight: One or two channels fail, leaving parts of the screen darker than others.
5. Comparison: SKY82896 vs. SKY82897
While very similar, there is a key distinction between these two models:
-
SKY82896: Three-channel driver (supports up to 27 LEDs).
-
SKY82897: Two-channel driver (supports up to 18 LEDs).
Technicians must ensure they use the correct version, as a mismatch will lead to incomplete backlight illumination or circuit errors.
6. Maintenance and Installation Tips
Due to the WLCSP-16 footprint, the following is recommended for successful integration:
-
Thermal Management: Use a high-quality flux and set your hot-air station between 330°C and 350°C to avoid damaging the internal silicon.
-
Alignment: Because the pins are “balls” underneath the chip, precise alignment with the motherboard silkscreen is critical.
-
Inductor Inspection: Often, if the SKY82896 has failed, the external boost inductor or the Schottky diode in the circuit may also be damaged. Always test these peripheral components.
