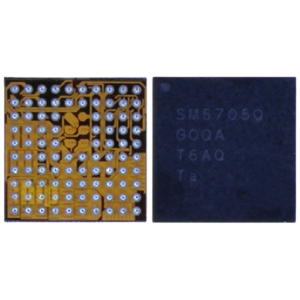

SM 5705 Q Mobile Phone IC
Unmatched Performance for Modern Mobile Phones
The SM 5705 Q Mobile Phone IC is designed to elevate your mobile device’s performance through cutting-edge technology. Engineered for precision, this integrated circuit (IC) ensures smooth operations in various systems, from power management to smart functionality integration. It’s a dependable solution for manufacturers aiming to equip their devices with state-of-the-art components that enhance user experience. SM 5705 Q Mobile Phone IC
Compact Design with Advanced Capabilities
At the heart of its value lies the SM 5705 Q’s compact design, enabling it to fit seamlessly within almost any mobile device configuration. Despite its size, the IC boasts a robust architecture that optimizes energy efficiency, ensuring longer battery life without compromising system reliability. Whether you’re designing a smartphone or a smart device, the SM 5705 Q delivers consistent performance where it matters most.
Versatility Meets Reliability
Beyond its technical specifications, the SM 5705 Q Mobile Phone IC stands out for its versatility in application. This IC is capable of integrating with various platforms, enabling smoother communication between hardware components and software environments. Its reliability ensures uninterrupted operation, even in demanding conditions, making it ideal for modern mobile devices with high-performance requirements. SM 5705 Q Mobile Phone IC
Whether you’re a manufacturer seeking top-quality components or an enthusiast exploring advanced mobile technologies, the SM 5705 Q is the perfect choice to enhance your device’s functionality and efficiency. Upgrade your designs with the SM 5705 Q Mobile Phone IC, and experience next-level reliability today. SM 5705 Q Mobile Phone IC
The SM5705Q is a high-precision Power Management and Charging Integrated Circuit (IC) primarily utilized in Samsung Galaxy smartphones and various mid-range Android devices.1 It is a critical component responsible for regulating the electrical flow between the USB charging port, the battery, and the logic board. SM 5705 Q Mobile Phone IC
Below are the comprehensive technical specifications and details for the SM5705Q IC.
Technical Specifications: SM5705Q Charging IC
| Feature | Specification Details |
| Model Number | SM5705Q (also referred to as SM5705 or SM5705R) |
| Component Type | Power Management IC (PMIC) / USB Charging Controller |
| Package Type | BGA (Ball Grid Array) |
| Pin Count | 20-Pin |
| Supported Power Output | Standard 5W (5V / 1A) typical; supports fast charging protocols |
| Input Voltage Range | 4.2V to 5.5V (Standard USB VBUS) |
| Frequency | 50Hz / 60Hz internal switching |
| Primary Functions | Battery charging, Voltage regulation, Current protection |
| Operating Temperature | -25°C to +85°C (Standard industrial grade) |
| Compatibility | Samsung Galaxy A Series, J Series, C Series (e.g., A5, J5, C5) |
| Safety Features | Over-voltage protection (OVP), Thermal shutdown, Short-circuit protection |
Key Functional Roles
The SM5705Q is more than just a bridge; it acts as a “traffic controller” for your phone’s power. Its primary duties include:
-
Switching Charger: Efficiently converts high-voltage input from the USB port to the specific voltage required by the Lithium-Ion battery (typically around $3.8V$ to $4.4V$).
-
VBUS Detection: Recognizes when a charger is plugged in and communicates with the processor to initiate the charging animation and logic.
-
Thermal Regulation: Monitors the temperature of the charging circuit. If the device becomes too hot, the SM5705Q will throttle the current to prevent battery degradation or fire hazards.
-
Reverse Current Protection: Prevents power from flowing backward from the battery to the USB port when no charger is connected.
Common Signs of Failure
Because this IC is constantly under high electrical stress, it is a frequent point of failure in older smartphones. Common symptoms that the SM5705Q needs replacement include:
-
Fake Charging: The phone shows a charging icon but the battery percentage does not increase.
-
No Power: The device is “dead” and will not turn on even with a known good battery.
-
Overheating: The area near the charging port or the middle of the motherboard becomes excessively hot during use.
-
USB Not Recognized: The device fails to sync data with a computer.
Installation Note
The SM5705Q is a BGA-style chip, meaning the “pins” are actually tiny solder balls underneath the chip. Replacing this requires professional equipment, including a hot air rework station (set to approximately $330°C$–$350°C$), high-quality flux, and precision tweezers.
