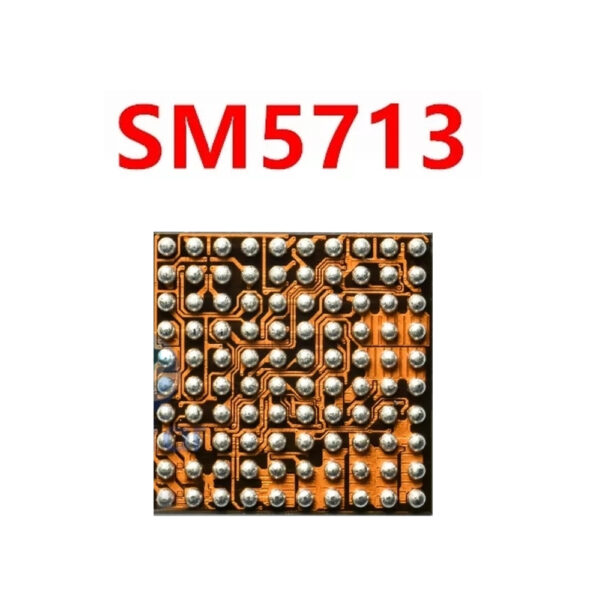

SM 5713 Original Mobile Phone IC
Enhance Your Mobile’s Efficiency with SM 5713 IC
The SM 5713 Original Mobile Phone IC is the perfect solution for maintaining and improving mobile device performance. This premium-grade mobile phone IC is designed to deliver unmatched reliability and superior functionality, ensuring your device operates seamlessly. Whether you’re a professional technician, an avid DIY enthusiast, or someone who appreciates high-quality electronics, the SM 5713 IC is crafted to meet your needs effectively. SM 5713 Original Mobile Phone IC
Superior Quality and Compatibility
This mobile phone IC is an original, authentic component that guarantees the highest standards of quality. Designed with precision engineering, it offers excellent durability, reliable performance, and robust compatibility across various mobile phone models. It integrates smoothly into your system to enhance the efficiency of your device, ensuring a hassle-free experience during installation and usage.
Why Choose SM 5713 Original Mobile Phone IC?
- Authenticity: Enjoy peace of mind knowing this product is genuine and manufactured to deliver consistent results.
- Performance: Maximize the operational capacity of your device with a reliable and efficient component.
- Durability: Constructed with high-quality materials that ensure longevity and consistent functionality over time.
- Compatibility: Suitable for a wide range of mobile phone models to meet diverse requirements effortlessly.
The SM 5713 IC stands out as a trusted choice for those seeking an original replacement or upgrade component for their devices.
Perfect for Technicians and Mobile Enthusiasts
The SM 5713 IC isn’t just another product; it’s a high-performing solution built for those who demand quality and efficiency. It features an exact fit and is carefully curated to meet the demands of even the most discerning users. Whether you’re repairing a device or upgrading mobile components, this IC ensures your work is efficient and stress-free. SM 5713 Original Mobile Phone IC
Take advantage of the SM 5713 Original Mobile Phone IC to unlock the true potential of your mobile device. Invest in quality, depend on reliability, and enjoy exceptional performance today!
The SM5713 is a critical Power Management Integrated Circuit (PMIC), often referred to as a “Sub-PMIC” or “Small Power IC” in mobile repair circles. It is primarily found in Samsung Galaxy smartphones and is responsible for managing voltage regulation, battery charging profiles, and system power sequencing for the processor and peripheral components. SM 5713 Original Mobile Phone IC
Technical Specifications Table
The following table summarizes the key electrical and physical characteristics of the original SM5713 IC.
| Feature | Specification |
| IC Model | SM5713 |
| Manufacturer | Silan Microelectronics (Original Equipment) |
| Package Type | BGA (Ball Grid Array) |
| Primary Function | Power Management & Battery Charging Controller |
| Input Voltage Range | $3.4\text{V} \text{ to } 4.5\text{V}$ (Standard Li-ion Operating Range) |
| Output Channels | 6 Buck Converters, 2 LDO (Low Dropout) Regulators |
| Output Voltage | $0.8\text{V} \text{ to } 1.35\text{V}$ (Typical for CPU/Memory cores) |
| Communication | $\text{I}^2\text{C}$ / SMBus Protocol (Address: 0x6B or 0x6A) |
| Safety Features | Thermal Shutdown ($+135^\circ\text{C}$), Over-Voltage Protection (OVP) |
| Compatibility | Samsung Galaxy S10, S10+, A50, A60, Note 10 series |
Functional Overview
The SM5713 acts as a specialized regulator that steps down the battery voltage to precise levels required by the System-on-Chip (SoC). It is specifically optimized for mid-range and flagship Android platforms using Exynos processors. SM 5713 Original Mobile Phone IC
1. Power Regulation
The chip integrates high-efficiency Buck Converters that supply core voltages like VDD_CORE and VDD_MIF. These rails are critical for the stability of the processor under heavy loads, such as gaming or high-definition video recording. SM 5713 Original Mobile Phone IC`
2. Charging and Logic
Unlike the main PMIC, which handles general power-on sequences, the SM5713 often includes Vbus Detection circuitry. It monitors the USB input to validate the charging protocol (PD/QC) before allowing current to flow into the battery. This makes it a frequent point of failure in “fake charging” scenarios where the phone shows a charging icon but the battery percentage does not increase. SM 5713 Original Mobile Phone IC
Common Applications and Symptoms of Failure
The SM5713 is widely used across the Samsung ecosystem. If this IC becomes faulty—often due to heat stress or liquid damage—the device may exhibit specific symptoms:
-
Charging Issues: The device may refuse to charge, charge very slowly, or get stuck at a specific percentage (e.g., 15%).
-
Power Stability: Sudden reboots or “thermal” warnings even when the phone is cool to the touch.
-
Connectivity Errors: Issues with the USB PHY (Physical Layer) not being recognized by computers.
Compatible Models
-
Samsung Galaxy S-Series: S10, S10 Plus, S10 Lite, S10e.
-
Samsung Galaxy A-Series: A40, A50 (A505F), A51, A60.
-
Samsung Galaxy M/Note Series: M21, M30, Note 10.
Installation Note
Since the SM5713 is a BGA (Ball Grid Array) component, replacing it requires professional micro-soldering tools. A hot air station set to approximately $330^\circ\text{C} \text{ to } 350^\circ\text{C}$ is typically used for removal and installation. Technicians must ensure correct orientation based on the “dot” indicator on the chip’s surface.
