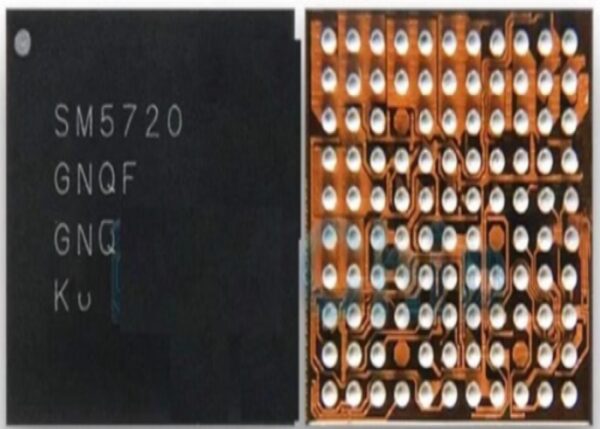

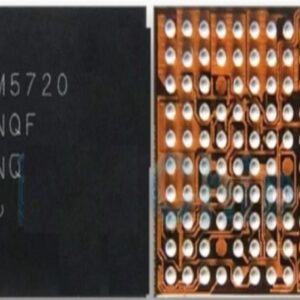

SM 5720 Mobile Phone IC
Enhancing Mobile Performance with SM 5720 Mobile Phone IC
The SM 5720 Mobile Phone IC is here to redefine the functionality of modern mobile devices. Designed with precision and cutting-edge technology, this integrated circuit (IC) ensures uncompromising performance, durability, and compatibility with a wide range of mobile phone hardware. It is an essential component for manufacturers and repair technicians aiming to deliver robust mobile experiences to users. SM 5720 Mobile Phone IC
Key Features & Benefits
Built for efficiency and reliability, the SM 5720 IC sets itself apart in a competitive industry. Its compact design and optimized functionality allow seamless integration, helping mobile devices achieve remarkable energy efficiency and performance. With its advanced power management capabilities, users benefit from longer battery life and improved hardware consistency.
The SM 5720 IC also supports demanding applications and enhances system responsiveness, paving the way for improved multitasking and faster processing speeds. This IC is crafted with compatibility in mind, ensuring smooth operation across various mobile device models and brands.
Why Choose the SM 5720 Mobile Phone IC?
Whether you’re a mobile device manufacturer or a repair professional, the SM 5720 Mobile Phone IC provides significant value. Its robust design ensures long-lasting quality and resilience under intense conditions, giving users the reliability they demand. The IC’s ability to optimize device energy consumption makes it an eco-friendly choice, reducing power wastage and aligning with sustainable practices.
Additionally, the SM 5720 IC promotes streamlined manufacturing and repair processes, thanks to its straightforward integration requirements. This makes it a versatile and indispensable solution for anyone working in the mobile technology sector.
Applications & Compatibility
The SM 5720 Mobile Phone IC is adaptable to a variety of mobile phone brands and models, including some of the latest releases in the market. Designed for universal compatibility, it offers a worry-free solution for ensuring consistent device performance. Its cutting-edge features cater to modern smartphone functionalities, such as advanced apps, sharper displays, and high-speed processing requirements. SM 5720 Mobile Phone IC
Enhance your mobile devices with the SM 5720 Mobile Phone IC—the epitome of durability, efficiency, and excellence in modern integrated circuit solutions.
The SM5720 is a specialized Integrated Circuit (IC) primarily used in Samsung’s flagship smartphones. It is a Power Management Integrated Circuit (PMIC), specifically dedicated to the Baseband and Charging subsystems. SM 5720 Mobile Phone IC
In modern mobile architecture, while the main PMIC handles the CPU and general system power, specialized chips like the SM5720 manage the high-precision power requirements of the cellular modem (Baseband) and battery charging logic. This ensures that the device maintains a stable network connection and safe thermal levels during high-speed charging.
SM5720 Technical Specifications
| Feature | Specification |
| Model Number | SM5720 / SM5720 GNRO |
| Component Type | Baseband PMIC / Secondary Power Management IC |
| Primary Function | Baseband Power Supply & Battery Charging Regulation |
| Compatible Brand | Samsung |
| Primary Device Support | Galaxy S8, S8 Plus, Galaxy Note 8, Galaxy S7 (some variants) |
| Mounting Type | BGA (Ball Grid Array) |
| Package Material | Silicon / Epoxy Resin |
| Operating Voltages | Multi-rail (typically 1.8V, 1.2V, and 0.8V for modem core) |
| Thermal Protection | Integrated thermal shutdown and over-current protection |
| Connectivity Interface | I2C / SPMI for communication with Application Processor |
Key Roles and Functions
The SM5720 serves two critical purposes in a smartphone’s logic board:
- Baseband Power Management:
The IC provides stabilized voltage rails to the modem processor. In the Galaxy S8 and Note 8 series, this is crucial for LTE/4G connectivity. If this IC fails, the phone will typically show “No Service,” “No SIM,” or “Baseband Unknown” in the software settings.
- Charging Logic & Power Delivery:
Often referred to as the “Charging IC,” it manages the transition of power from the USB-C port to the battery. It communicates with the phone’s firmware to negotiate fast-charging speeds and monitor the battery’s state of health.
- Power Sequencing:
It handles the precise “power-up” sequence required for the network hardware to boot correctly without causing a surge that could damage the delicate 10nm or 14nm modem architecture.
Common Failure Symptoms
When the SM5720 IC is damaged—often due to low-quality chargers, water damage, or physical impact—the following issues are common:
-
Total Power Loss: The device may enter a “Dead” state where it refuses to turn on.
-
Charging Issues: The phone might show a charging icon but the percentage doesn’t increase (Fake Charging).
-
Network Failure: Disappearance of IMEI or Baseband version in the settings menu.
-
Short Circuit: Overheating near the top-middle section of the motherboard.
Installation Requirements
Due to its BGA (Ball Grid Array) design, replacing this chip requires professional tools. A technician must use a hot air rework station set to approximately 330°C–350°C to desolder the old chip, clean the pads with a soldering wick, and “reflow” the new chip into place using high-quality flux.
