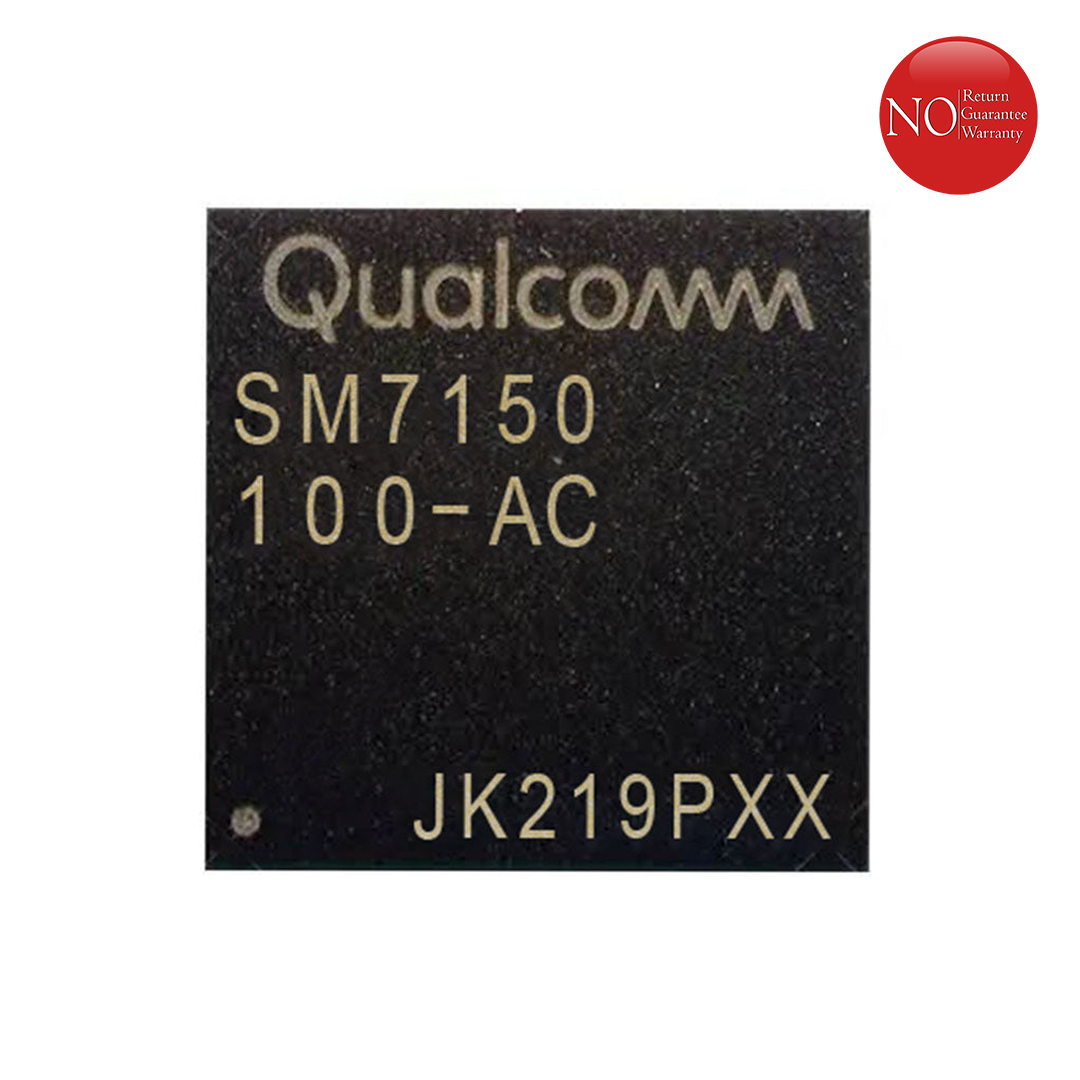

SM 7150 CPU Mobile Phone IC
High-Performance Mobile CPU
The SM 7150 CPU Mobile Phone IC is designed to deliver powerful performance and energy efficiency, ensuring your mobile devices run seamlessly. Perfect for multitasking and high-performance applications, this CPU meets the modern demands of today’s mobile world. SM 7150 CPU Mobile Phone IC
Optimized Design for Durability
The SM 7150 combines cutting-edge technology with a compact design, making it a reliable choice for device manufacturers. Its architecture is tailored to support smooth operations, while maintaining longevity for prolonged use. SM 7150 CPU Mobile Phone IC
Enhanced Compatibility
Built to enhance compatibility, the SM 7150 supports a wide range of mobile device configurations. Whether you’re upgrading existing hardware or designing new devices, this component ensures seamless integration and optimal performance across various platforms. SM 7150 CPU Mobile Phone IC
The SM7150 is the internal model number for the Qualcomm Snapdragon 730 series (including the 730, 730G, and 732G).1 This chipset represents a significant milestone in mid-range mobile processing, introducing features like Computer Vision ISPs and advanced AI engines to more affordable devices.2
Below are the comprehensive technical specifications for the SM7150 platform.
SM7150 (Snapdragon 730 Series) Full Specifications
| Category | Specification Details |
| Model Numbers | SM7150-AA (730), SM7150-AB (730G), SM7150-AC (732G) |
| Process Technology | 8nm LPP (Low Power Plus) FinFET |
| CPU Architecture | 64-bit Octa-core Kryo 470 |
| CPU Core Cluster | 2x Performance cores (Cortex-A76) + 6x Efficiency cores (Cortex-A55) |
| CPU Clock Speed | Up to 2.2 GHz (730/730G) / Up to 2.3 GHz (732G) |
| GPU Model | Qualcomm Adreno 618 (600MHz – 825MHz depending on variant) |
| Graphics APIs | Vulkan 1.1, OpenGL ES 3.2, OpenCL 2.0 Full Profile, DirectX 12 |
| AI Engine | 4th Gen Qualcomm AI Engine (Hexagon 688 DSP) |
| RAM Support | Dual-channel LPDDR4X up to 1866 MHz; Max 8GB capacity |
| Storage Support | eMMC 5.1, UFS 2.1, UFS 3.0 |
| Display Support | Quad HD+ (3360 x 1440), Full HD+ (2520 x 1080) @ 120Hz |
| ISP (Camera) | Qualcomm Spectra 350 (Dual 14-bit CV-ISP) |
| Max Camera Res | Up to 192 MP (Single); 22 MP (Dual) with MFNR/ZSL |
| Video Recording | 4K HDR @ 30 FPS; 1080p @ 120 FPS; 720p @ 960 FPS (Slow-mo) |
| Modem | Snapdragon X15 LTE (Cat 15 DL: 800 Mbps, Cat 13 UL: 150 Mbps) |
| Wi-Fi & Bluetooth | Wi-Fi 6-ready, Bluetooth 5.0 / 5.1, Qualcomm FastConnect 6200 |
| Charging | Qualcomm Quick Charge 4+ Technology |
| Location | GPS, GLONASS, Beidou, Galileo, QZSS, SBAS, Dual-frequency GNSS |
Key Feature Breakdown
1. Performance and Efficiency
The SM7150 uses an 8nm fabrication process, which was a major step up from the 10nm used in previous generations.3 This allows the chip to run cooler and maintain higher performance for longer periods without thermal throttling. The Kryo 470 CPU provides a 35% performance uplift over the Snapdragon 710.4
2. Gaming Optimizations (730G and 732G)5
The “G” in the variant names stands for Gaming. While the base SM7150-AA is a balanced chip, the SM7150-AB (730G) and SM7150-AC (732G) feature:
-
Overclocked GPU: The Adreno 618 is tuned for higher clock speeds, offering up to 15% faster graphics rendering.6
-
Snapdragon Elite Gaming: Includes features like “Jank Reducer” and “Anti-Cheating Extensions” to improve the multiplayer mobile experience.7
-
HDR Gaming: Supports 10-bit color depth for more realistic lighting and shadows.8
3. Advanced Imaging (CV-ISP)
The SM7150 was the first in the 7-series to include a Computer Vision Image Signal Processor (CV-ISP).9 This dedicated hardware handles complex tasks like: SM 7150 CPU Mobile Phone IC
-
Portrait Mode Video: Applying real-time bokeh effects to 4K video.10
-
Object Segmentation: Intelligently identifying and separating subjects from backgrounds.11
-
Multi-Frame Noise Reduction (MFNR): Taking multiple photos in low light and merging them for a cleaner image instantly.12
4. Artificial Intelligence
The Hexagon 688 DSP includes a dedicated Tensor Accelerator.13 This allows the phone to handle voice assistants, real-time translation, and camera scene detection locally on the device with minimal battery drain. SM 7150 CPU Mobile Phone IC
