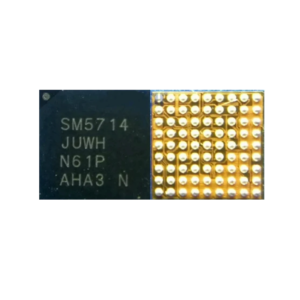

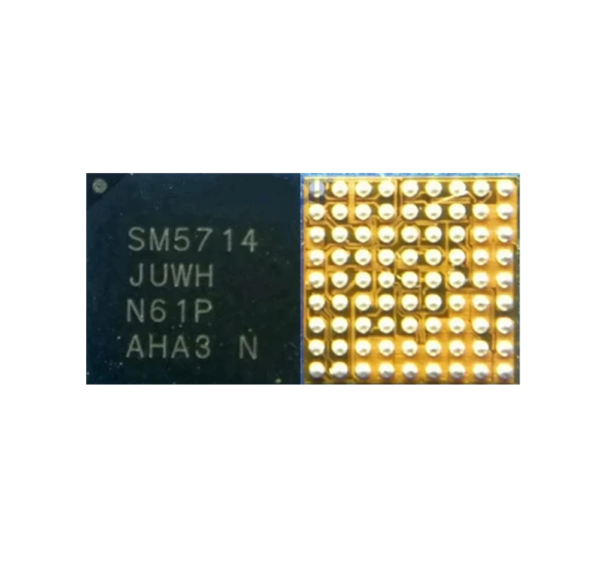

SM5714 Original Mobile Phone IC
Leading-Edge Functionality and Efficiency
The SM5714 Original Mobile Phone IC is a state-of-the-art integrated circuit designed to elevate the performance and reliability of mobile devices. This IC is engineered to meet the demands of modern smartphones, including enhanced power management capabilities and superior efficiency. With advanced technology at its core, this component ensures stable and consistent operation, making it an essential part of high-performing electronic systems. SM5714 Original Mobile Phone IC
Enhanced Power Management
At the heart of the SM5714 lies exceptional power management functionality that reduces energy consumption while maximizing device efficiency. This IC is optimized for handling complex electrical tasks seamlessly, ensuring your mobile device delivers peak performance without draining the battery excessively. Whether you’re multitasking or running resource-intensive applications, the SM5714 helps your device maintain operational efficiency with minimal power consumption.
Built for Durability and Compatibility
The SM5714 Original Mobile Phone IC is designed for durability and seamless integration into a wide range of smartphone models. Its robust construction ensures long-lasting operation, while its compatibility with various mobile platforms makes it a versatile choice for manufacturers and repair professionals. This IC embodies reliability, offering consistent output under diverse conditions. SM5714 Original Mobile Phone IC
Why Choose SM5714 Original Mobile Phone IC?
With the increasing demand for high-performing and energy-efficient devices, the SM5714 stands out as a reliable solution for mobile technology enthusiasts and professionals alike. Whether you’re manufacturer sourcing quality components or a technician repairing mobile devices, this IC promises unparalleled performance and functionality. Choose the SM5714 to stay ahead in today’s fast-paced world of technological innovation. SM5714 Original Mobile Phone IC
The SM5714 is a specialized Power Management Integrated Circuit (PMIC) and charging controller primarily used in mid-range Samsung Galaxy smartphones.1 It belongs to a category of “IF-PMICs” (Intermediate Frequency Power Management ICs) that handle critical tasks like battery charging, USB-PD negotiation, and voltage regulation for peripheral systems like audio and display.2
Below is the full technical specification for the original SM5714 IC.
SM5714 Technical Specifications Table
| Feature | Specification Details |
| Manufacturer | Silan Microelectronics (Original Equipment) |
| Function | Multi-function Charging / Power / Audio / Display IC |
| Input Voltage ($V_{BUS}$) | 3.8V to 6.5V (Absolute Max) |
| Max Charging Current | ~1.5A Continuous |
| Package Type | WLCSP-20 (Wafer Level Chip Scale Package) / BGA |
| Pin Count | 20 Balls (some variants may use 24-pin QFN layout) |
| Operating Temperature | $0^\circ\text{C}$ to $+100^\circ\text{C}$ |
| Thermal Shutdown | $\sim 125^\circ\text{C}$ |
| Weight | Approximately 0.08g |
| Communication | SMBus / I2C (interface with Fuel Gauge & CPU) |
| Protection Features | OVP (Over Voltage), OCP (Over Current), Reverse Current Blocking |
| Compliance | RoHS Lead-Free |
Key Functional Capabilities
The SM5714 is more than just a charging chip; it acts as a gateway for power entering the phone’s motherboard.
-
Fast Charging Support: It manages the handshake protocol between the smartphone and the wall adapter to enable high-speed charging while monitoring battery health.3
-
Battery Management: The IC communicates with the internal fuel gauge to monitor cell voltage, temperature, and state-of-charge (SoC).4
-
Voltage Regulation: It provides stabilized power rails for the Display (LCD/OLED power) and Audio (Codec/Amplifier) subsystems, ensuring there is no noise or flicker during operation. SM5714 Original Mobile Phone IC
-
Safety Logic: It includes a hard-wired thermal limit. If the chip detects the phone is overheating, it will automatically throttle or cut off the charging current to prevent battery swelling or fire.
Common Applications & Device Compatibility
The SM5714 is highly specific to the Samsung ecosystem, particularly devices utilizing Exynos or mid-tier MediaTek chipsets.5 Common models include:
-
Samsung Galaxy A Series: A12 (A125F), A22 (A226B)6, A51, A52s, A53 5G.
-
Samsung Galaxy S Series: Compatible variants of S10/S10+.
-
Samsung Galaxy A8s: (G8870).7
Diagnosis of a Faulty SM5714
Technicians often look for specific symptoms when this IC fails:
-
Zero Current Draw: The phone shows 0.00A on a USB power meter when plugged in.
-
Fake Charging: The lightning bolt icon appears, but the battery percentage never increases.8
-
Heat near the CPU: The IC becomes physically hot to the touch (short circuit) immediately upon connecting a charger.
-
Audio/Display Issues: Since it manages display and audio power rails, a partial failure can cause no sound or a black screen even if the phone is “on.”
