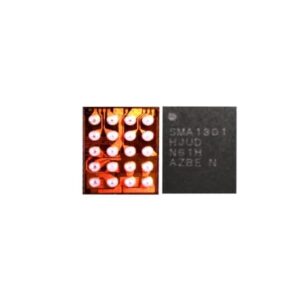

SMA 1301/S10 Audio IC Original Mobile Phone IC
Bring your mobile phone’s audio performance back to life with the SMA 1301/S10 Audio IC Original Mobile Phone IC, the original replacement component designed to restore functionality and deliver superior sound quality. Whether you’re facing issues with audio clarity, distorted sound, or faulty hardware, this advanced Audio IC is the solution you’ve been searching for. SMA 1301/S10 Audio IC Original Mobile Phone IC
Exceptional Compatibility and Reliability
The SMA 1301/S10 Audio IC is designed to fit seamlessly with a wide range of mobile phone models, meeting the highest standards of reliability. Engineered with precision, this original IC ensures smooth integration and consistent performance, eliminating common audio glitches. Trusted by professionals, it delivers the dependability you expect from authentic mobile phone components.
High-Performance Audio Solution
This IC doesn’t just repair; it enhances. Perfectly tailored for mobile phone audio systems, SMA 1301/S10 optimizes sound clarity, ensuring every call and media playback is flawless. It is particularly ideal for users who value smooth functionality in communication and entertainment without intrusive noise distortion.
Why Choose the SMA 1301/S10?
Choosing this original Audio IC guarantees quality and longevity for your mobile device. Manufactured using premium materials, the SMA 1301/S10 promises to uphold performance even under extended usage. Whether repairing a personal device or working as a specialist, relying on this IC ensures peace of mind and ultimate satisfaction. SMA 1301/S10 Audio IC Original Mobile Phone IC
Restore your smartphone’s audio capabilities with the SMA 1301/S10 Audio IC today. Let this original component bring back the immersive sound quality you’ve been missing.
The SMA1301 (often referred to as the S10 Audio IC) is a high-performance audio codec and amplifier chip primarily found in Samsung’s flagship and mid-range devices from 2019 onwards. It is a critical surface-mount component responsible for digital-to-analog conversion (DAC) and driving the speaker and earpiece outputs. SMA 1301/S10 Audio IC Original Mobile Phone IC
Below are the detailed specifications and technical parameters for this integrated circuit. SMA 1301/S10 Audio IC Original Mobile Phone IC
Technical Specifications Table
| Feature | Specification |
| Model Number | SMA1301 (S10 Series Variant) |
| Component Type | Audio Codec / Sound Amplifier IC |
| Compatibility | Samsung Galaxy S10, S10+, S10e, A10, A50, Note 10 5G |
| Package Type | LGA-48 (Land Grid Array) |
| Pin Configuration | 48-ball BGA/LGA layout |
| Max Sampling Rate | 192 kHz |
| Resolution | 24-bit / 32-bit (Lossless Audio Support) |
| Input Interface | I2S / I2C (Serial Control & Audio Data) |
| Operating Voltage | 1.8V (Digital) / 3.3V to 4.5V (Analog/Amplifier) |
| Functionality | DAC/ADC conversion, Speaker Driving, Mic Input Processing |
| Audio Output | Stereo Speaker Support / High-Impedance Headphone Drive |
| Communication | $I^2C$ for Register Configuration and Volume Control |
| Thermal Protection | Integrated Over-temperature Shutdown |
| SNR (Signal-to-Noise Ratio) | >100 dB (Typical) |
Core Functional Overview
The SMA1301 acts as the “brain” for the phone’s physical sound production. While the main application processor (like an Exynos or Snapdragon) handles high-level software audio, the SMA1301 manages the physical electrical signals.
-
Hi-Fi Audio Support: It is designed to support high-resolution audio formats (FLAC, ALAC). It maintains a high $S/N$ ratio to ensure that even at high volumes, the Total Harmonic Distortion ($THD+N$) remains minimal.
-
Power Efficiency: As a mobile-centric IC, it uses Class-D amplification technology for speakers, which provides high output power while minimizing heat generation and battery drain.
-
Precision Integration: The chip is “pin-to-pin” compatible with the original factory-installed A10 audio chips, meaning it can be replaced by a technician without needing to modify the motherboard’s firmware or trace routing.
Common Failure Symptoms
When the SMA1301 IC fails (often due to water damage or physical drops), the following issues typically occur:
-
Total Audio Loss: No sound from speakers, earpiece, or microphones.
-
Distortion: Crackling or “robotic” sounds during calls or music playback.
-
Boot Loops: A shorted audio IC can occasionally prevent the phone from passing the initial BIOS/Power-On-Self-Test (POST).
Installation Requirements
-
Equipment: Requires a professional hot air rework station, flux, and a microscope.
-
Temperature Profile: Recommended reflow temperature is typically around 230°C to 250°C to avoid damaging the internal silicon or neighboring components.
-
Precision: Because it is an LGA/BGA package, the alignment must be perfect to ensure all 48 pins make contact with the motherboard pads.
