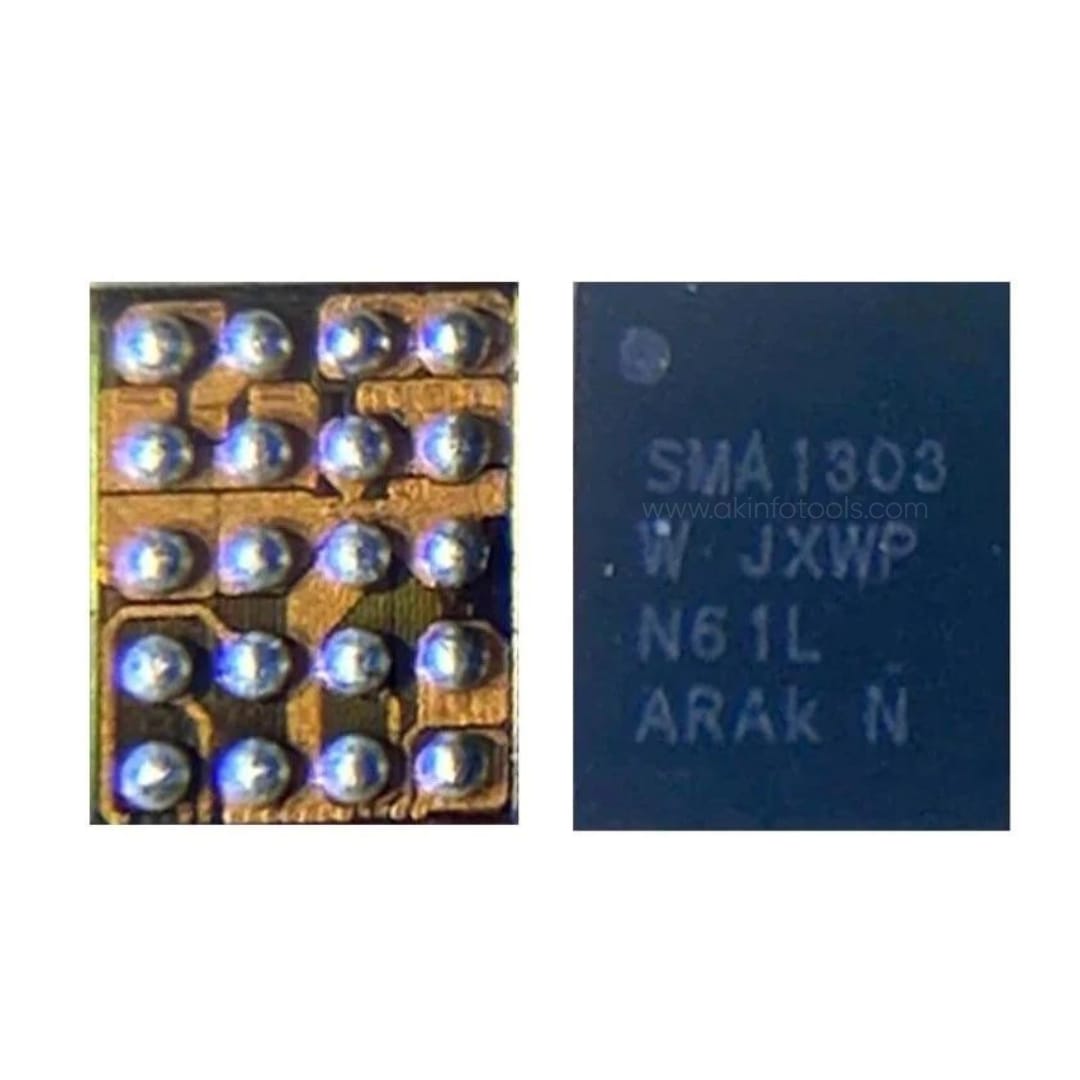

SMA 1303 Mobile Phone IC
Enhance Mobile Functionality with SMA 1303 IC
Integrating superior technology and reliability, the SMA 1303 Mobile Phone IC is a cutting-edge solution ideal for powering modern mobile devices. With a compact design and high energy efficiency, this IC ensures optimal performance, allowing users to experience seamless functionality in a wide range of applications. Whether you’re focused on enhancing signal processing or improving overall device operations, the SMA 1303 brings advanced engineering at a user-friendly level. SMA 1303 Mobile Phone IC
Key Features and Benefits
Designed to meet the demands of contemporary mobile applications, the SMA 1303 IC delivers unmatched performance through a combination of innovative features: SMA 1303 Mobile Phone IC`
– **Optimized Efficiency:** The SMA 1303 excels in reducing energy consumption while maintaining high output, making it suitable for energy-conscious devices.
– **Compact Design:** Its streamlined architecture allows for integration into slim mobile devices without compromising on performance or durability.
– **Enhanced Signal Processing:** Tailored for advanced mobile systems, the SMA 1303 ensures lightning-fast connectivity and sharp signal clarity.
– **Durability:** Built from high-grade components, this IC stands resilient against wear and tear from everyday use.
Applications and Compatibility
The SMA 1303 is engineered to be adaptable across diverse mobile platforms. Whether it’s smartphones, tablets, or other portable devices, this IC integrates smoothly due to its versatile design. Its enhanced electromagnetic shielding ensures uninterrupted functionality, making it suitable for high-performance environments. With broad compatibility, developers and manufacturers can confidently incorporate the SMA 1303 IC into their product designs. SMA 1303 Mobile Phone IC
Why Choose SMA 1303 for Your Device?
In today’s fast-evolving tech landscape, efficiency, reliability, and adaptability are key traits for electronic components. The SMA 1303 embodies these qualities and more, setting a benchmark for mobile ICs. With its innovative features and robust design, this IC empowers mobile devices to deliver exceptional user experiences while maintaining sustainability and durability. If your goal is to ensure your mobile design stands out for its advanced capabilities, the SMA 1303 is your ideal choice. SMA 1303 Mobile Phone IC
The SMA 1303 is a specialized high-efficiency Class-H Audio Amplifier IC (often referred to as an “Audio Boost Amplifier”) primarily used in Samsung Galaxy and other Android smartphones. It is designed to drive loudspeakers and ringers with high fidelity while maintaining low power consumption, essential for mobile battery life. SMA 1303 Mobile Phone IC
Below are the full technical specifications and functional details. SMA 1303 Mobile Phone IC
SMA 1303 Technical Specifications
| Category | Parameter | Specification / Details |
| Basic Info | Model Number | SMA 1303 (often labeled as “5H 6M” in service manuals) |
| IC Type | Class-H Smart Audio Boost Amplifier | |
| Common Name | Audio Codec / Speaker Driver / Ringer IC | |
| Performance | Output Power | Typical 2W (into 8$\Omega$ or 4$\Omega$ loads) |
| Efficiency | High-efficiency Class-H architecture with Boost Converter | |
| SNR | $>110$ dB (estimated for high-fidelity audio) | |
| SNR (ADC) | 120 dB (for simultaneous audio sampling) | |
| Power | Operating Voltage | 4.5V to 5.5V (Class-H 6V Boost range) |
| Idle Current | Optimized for low-power standby modes | |
| Power Control | Digital Feed-Forward Class-H control | |
| Interfaces | Audio Input | I²S (Inter-IC Sound) or TDM interface |
| Control Interface | I²C (Inter-Integrated Circuit) for diagnostics/tuning | |
| Signal Path | Digital-to-Analog Converter (DAC) integrated | |
| Physical | Pin Count | 8-Pin / BGA (Ball Grid Array) configuration |
| Mounting Type | Surface Mount Technology (SMT) | |
| Material | High-durability silicon with internal copper layers | |
| Compatibility | Target Devices | Samsung Galaxy A21s, A31, A71, A8s, A12, etc. |
| Processor Sync | Typically paired with Exynos or Snapdragon SoCs |
Key Functional Features
-
Integrated Boost Converter: The SMA 1303 features an internal boost converter that elevates the battery voltage (typically 3.7V–4.2V) to a 6V rail. This allows the speaker to produce louder, clearer sound without clipping, even when the battery is low.
-
Audio DSP Integration: Includes digital signal processing for Dynamic Range Control (DRC) and Bass Boost, ensuring the small mobile speakers do not distort at high volumes.
-
Thermal & Circuit Protection: Equipped with over-current protection (OCP), under-voltage lockout (UVLO), and thermal shutdown to prevent the IC from burning out during prolonged high-volume playback.
-
Smart PA Functionality: It acts as a “Smart Power Amplifier,” monitoring the speaker’s state to prevent voice coil damage while maximizing output.
Common Failure Symptoms
When the SMA 1303 IC fails (often due to water damage or voltage spikes), the phone typically exhibits:
-
Total Audio Loss: No sound from the loudspeaker (music, ringtones, or speakerphone).
-
Headphone-Only Audio: Audio works through Bluetooth or the 3.5mm jack, but not the physical speaker.
-
Heat Issues: The area around the IC on the motherboard becomes excessively hot during audio tasks.
