SMB 1351- 022 Mobile Phone IC
Exceptional Performance for Mobile Devices
The SMB 1351- 022 Mobile Phone IC is the ideal solution for ensuring seamless functionality in modern mobile devices. Crafted with precision, this integrated circuit optimizes your phone’s operations, delivering unparalleled performance. Whether you’re looking to enhance power management, connectivity, or system efficiency, this IC exemplifies cutting-edge technology tailored to meet the demands of today’s smartphones.
Compact Design Meets Advanced Efficiency
This mobile phone IC boasts a compact design, making it ideal for device manufacturers who value space-saving components without compromising on performance. Its advanced architecture ensures robust power handling capabilities, enabling devices to operate smoothly under diverse conditions. Designed with versatility in mind, the SMB 1351-022 excels in multiple applications, making it a must-have for optimizing modern mobile devices.
Reliability for Long-Term Performance
The SMB 1351-022 IC is engineered for durability and consistent functionality, even in high-demand environments. Its intricate design ensures a reduced risk of overheating and energy loss, enhancing battery life and overall system reliability. It integrates smoothly with other components to deliver the ultimate mobile experience for end users while retaining ease of use for manufacturers during assembly.
The SMB 1351-022 Mobile Phone IC sets a benchmark for mobile technology, offering efficiency, compactness, and reliability—all in one state-of-the-art package. Equip your devices with the SMB 1351-022 and experience a transformative leap in mobile performance.

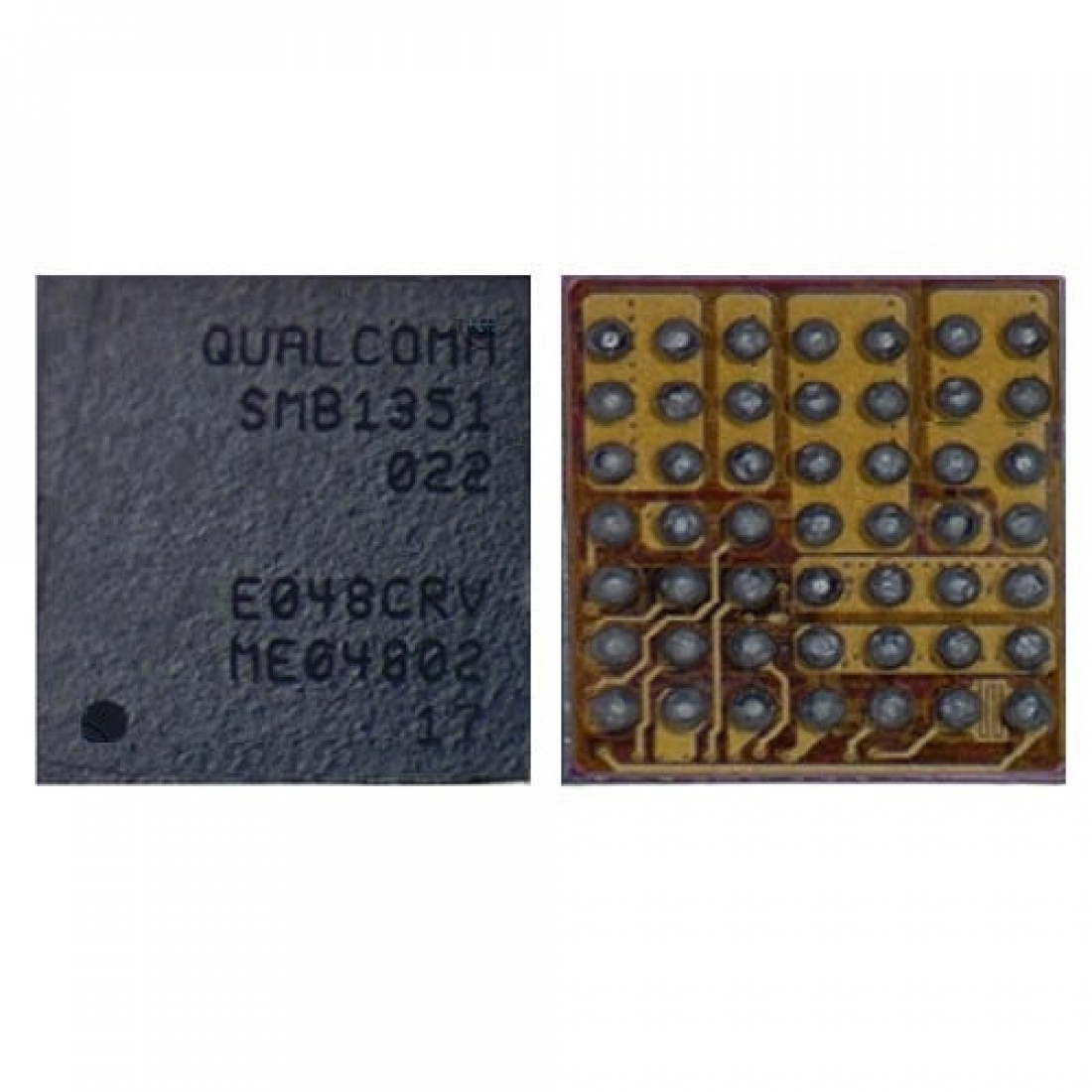

The SMB1351-022 is a high-performance, programmable battery management and charging Integrated Circuit (IC) developed by Qualcomm. It is a cornerstone component in the power architecture of numerous mid-to-high-end smartphones, particularly those utilizing the Snapdragon chipset.
Primarily designed to handle efficient power delivery, the SMB1351-022 facilitates fast-charging protocols (such as Quick Charge 3.0) while managing heat dissipation and battery longevity. It is frequently used in devices from brands like Xiaomi (Redmi 9A, Note 9), Samsung (Galaxy S6 series), and LG.
SMB1351-022 Technical Specifications
The following table outlines the critical electrical and physical characteristics of the SMB1351-022:
| Parameter | Specification Details |
| Manufacturer | Qualcomm (Summit Microelectronics technology) |
| IC Function | Battery Charging & Power Management (PMIC) |
| Charging Algorithm | Constant Current / Constant Voltage (CC/CV) |
| Input Voltage Range | $3.5\text{V}$ to $5.5\text{V}$ (Operating); up to $22\text{V}$ (Withstand) |
| Max Charging Current | Up to $1.5\text{A}$ (Programmable via $I^2C$) |
| Interface | $I^2C$ Serial Interface for digital programming |
| Fast Charge Support | Qualcomm Quick Charge 2.0 / 3.0 |
| Efficiency | Up to $94\%$ (Buck mode switching) |
| Package Type | QFN (Quad Flat No-Lead) / CWLNSP |
| Pin Count | Variable (Commonly 36-ball or 49-ball depending on variant) |
| Thermal Protection | Integrated Thermal Shutdown at $150^\circ\text{C}$ |
| Common Use Cases | Samsung S6, Redmi 9/9A, LG G4, Snapdragon devices |
Key Features and Functionality
-
Advanced Battery Management: The IC utilizes a switching architecture rather than a linear one. This significantly reduces power loss and heat generation, which is vital for maintaining the “skin temperature” of modern slim smartphones during fast charging.
-
Safety Protocols: It includes multi-layer protection mechanisms:
-
Over-voltage Protection (OVP): Prevents damage from faulty chargers.
-
Over-current Protection (OCP): Limits current flow to safe levels for the battery cells.
-
Short-circuit Protection: Instantly shuts down the power path if a short is detected.
-
-
Programmability: Through the $I^2C$ bus, the phone’s primary processor can communicate with the SMB1351 to adjust charging parameters in real-time. This allows the device to slow down charging as the battery gets full or if the device becomes too hot.
Troubleshooting & Repair
Technicians often target this IC when a phone exhibits “No Charging,” “Fake Charging” (where the icon shows but percentage doesn’t rise), or “USB Not Recognized” errors. Since it is a BGA/QFN component, replacement requires a hot-air rework station set typically between $320^\circ\text{C}$ and $350^\circ\text{C}$ and precision soldering skills.
More Products : https://gaffarmarketdelhi.com
