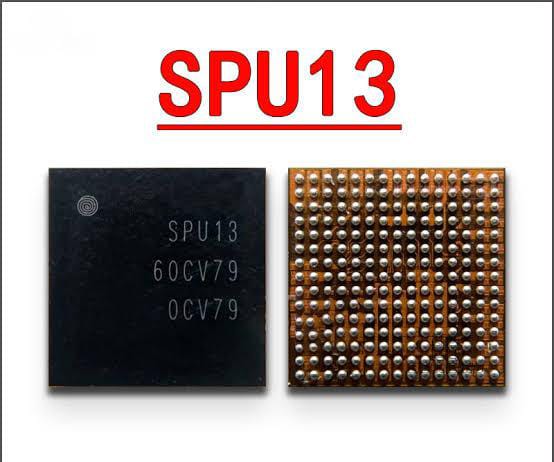

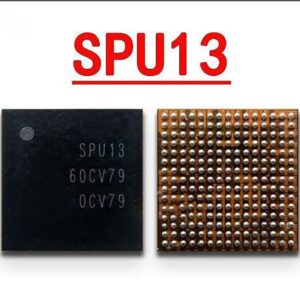

SPU13P Mobile Phone IC
Discover the SPU13P Mobile Phone IC
The SPU13P Mobile Phone IC is designed to deliver superior performance for modern mobile devices. With cutting-edge engineering and seamless integration capabilities, this integrated circuit ensures reliability, efficiency, and innovation tailored to meet current technological demands. It’s the ideal choice for manufacturers looking to enhance the functionality of their smartphones and other portable gadgets. SPU13P Mobile Phone IC
Advanced Features and Benefits
Engineered with precision, the SPU13P Mobile Phone IC offers exceptional attributes like low power consumption, optimized connectivity, and compatibility with various mobile operating systems. This makes it well-suited for devices aiming to combine performance and extended battery life. Additionally, its compact design facilitates easy assembly in devices, minimizing space utilization while maximizing efficiency. SPU13P Mobile Phone IC
Perfect for Next-Generation Mobile Devices
From faster processing speeds to smoother app performance, the SPU13P empowers mobile phones with advanced capabilities. Whether you are developing devices for entertainment, productivity, or general utility, this IC ensures that every feature operates at the highest standard. Its innovative design also supports 5G networks, paving the way for high-speed data transfer and superior user experiences.
Invest in the SPU13P Mobile Phone IC to create devices that stand out in the competitive market. Crafted for efficiency and excellence, it is a powerful solution for all your mobile technology needs. SPU13P Mobile Phone IC
The SPU13P is a critical Power Management Integrated Circuit (PMIC) primarily used in mid-range smartphones, most notably the Samsung Galaxy A53 5G (Model A536). It serves as the “heart” of the device’s electrical system, regulating and distributing power from the battery to essential components like the CPU, RAM, and display. SPU13P Mobile Phone IC
Technical Specifications
The following table outlines the comprehensive electrical and physical specifications of the SPU13P IC:
| Attribute | Specification | Detail |
| Model Number | SPU13P | Primary PMIC for Samsung A53 series |
| Package Type | BGA (Ball Grid Array) | High-density 196-contact pattern (14×14) |
| Dimensions | 8mm x 8mm x 1mm | Ultra-compact surface-mount design |
| Input Voltage ($V_{IN}$) | 4.5V to 28V | Optimized for single-cell Li-ion batteries |
| Switching Frequency | ~300 kHz | Synchronous buck regulation |
| Peak Output Current | Up to 3.0A | Supports high-demand processing tasks |
| Efficiency | > 90% | High-efficiency DC-DC conversion |
| Operating Temp | 0°C to 45°C | Standard consumer electronics range |
| Thermal Shutdown | 150°C (±10%) | Integrated protection against overheating |
| Pin Count | 196 Balls | Comprehensive voltage rail management |
Key Functions & Voltage Rails
The SPU13P manages multiple “rails” or dedicated power lines, ensuring each subsystem receives the exact voltage required:
-
VDD_CORE (0.8V – 1.2V): Supplies the primary processor logic. Instability here causes random reboots or system freezes.
-
VDD_DRAM (1.1V / 1.8V): Powers the LPDDR4X memory modules. Fluctuations in this rail lead to data corruption and boot failures.
-
LDO_1P8: A Low-Dropout Regulator that powers sensors, audio codecs, and the fingerprint reader.
-
PWM_VCN: Manages the backlight dimming signals for the OLED display.
Critical Repair Indicators
When an SPU13P IC fails, the mobile phone typically exhibits “dead” symptoms. Common failure modes include:
-
Total Power Failure: The device refuses to turn on even with a healthy battery.
-
Charging Issues: The phone fails to recognize the charger or shows a 0V reading at motherboard test points.
-
Thermal Runaway: The area near the PMIC becomes extremely hot to the touch during use.
-
Digital Feedback Loop Issues: Sudden shutdowns when the battery is at 15%–20%.
Installation Requirements
Because the SPU13P uses a BGA footprint, it cannot be replaced with a standard soldering iron. Successful installation requires:
-
Micro-soldering Expertise: Professional skills in IC reballing.
-
Specialized Tools: A hot-air rework station (calibrated to ~350°C), high-quality flux, and a specific BGA stencil for the SPU13P/Samsung A53 series.
-
ESD Precautions: Handling in an anti-static environment to prevent latent damage to the silicon.
More Products : https://gaffarmarketdelhi.com
