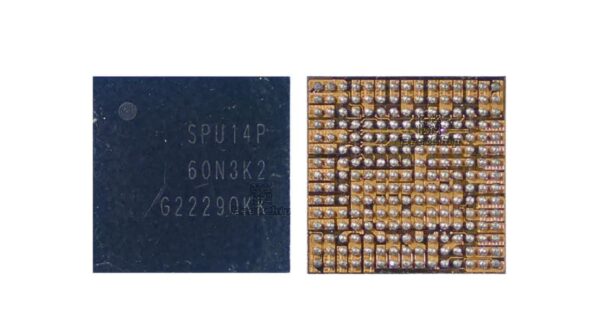

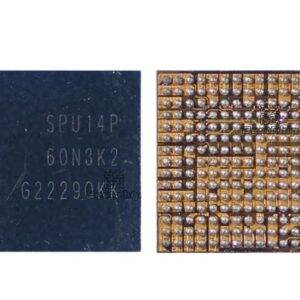

SPU14P Mobile Phone IC
Unmatched Efficiency and Performance
The SPU14P Mobile Phone IC is expertly designed to deliver exceptional performance for modern mobile devices. Featuring cutting-edge technology, this integrated circuit ensures reliable operation and seamless connectivity across a multitude of applications. Whether you’re optimizing mobile communication processes or enhancing functionality in smartphones, the SPU14P IC stands out as your ideal solution. SPU14P Mobile Phone IC
Compact Design Meets Versatility
With its compact design, the SPU14P IC offers unparalleled adaptability for various environments, reducing space requirements without compromising functionalities. This makes it perfect for integration within smartphones, tablets, and other compact devices. Its robust build quality ensures long-lasting performance even in demanding situations, supporting a multitude of use cases in the mobile ecosystem.
Why Choose the SPU14P IC?
The SPU14P Mobile Phone IC is the quintessential choice for manufacturers striving for premium-quality components in their mobile devices. Here’s why:
– **Enhanced Connectivity:** It provides flawless signal transmission and reception, ensuring mobile devices stay connected with minimal drop-offs.
– **Energy Efficiency:** Designed with energy efficiency in mind, reducing power consumption while maintaining optimal performance.
– **Reliability:** Built to endure, it offers consistent and reliable functionality over time, even in high-demand usage scenarios.
– **Advanced Technology Integration:** Prepares your devices for next-generation connectivity standards, offering a future-proof solution for increasing hardware demands.
Upgrade your mobile phone components with the SPU14P Mobile Phone IC and experience unparalleled quality and performance. Whether you’re a manufacturer or tech enthusiast, this product ensures top-tier reliability and efficiency in mobile device functionality.
The SPU14P is a critical Power Management Integrated Circuit (PMIC) and RF support chip predominantly used in modern mid-range and premium smartphones, such as the Samsung Galaxy A53 5G and various Xiaomi/Poco models.1 It serves a dual-purpose role in power regulation and RF signal conditioning, ensuring that the device’s baseband processor communicates efficiently with the network while maintaining stable voltage across the motherboard. SPU14P Mobile Phone IC
Technical Specifications: SPU14P IC
The following table summarizes the core technical parameters for the SPU14P.
| Parameter | Technical Details |
| Component Type | Power Management IC (PMIC) / RF Support IC |
| Application | Mobile Phone Power Distribution & Signal Conditioning |
| Input Voltage Range | $3.0\text{V}$ to $5.5\text{V}$ (Typical Li-ion battery range) |
| Output Voltage | Configurable ($0.6\text{V}$ to $3.3\text{V}$) |
| Max Output Current | Up to $2\text{A}$ per channel |
| Efficiency | Up to $95\%$ under optimal loads |
| Operating Temp. | $-40\text{°C}$ to $+125\text{°C}$ |
| Package Type | BGA (Ball Grid Array) / QFN-40 Pin |
| Interface | $I^2C$ (Inter-Integrated Circuit) for software control |
| Dimensions | Approx. $4\text{mm} \times 4\text{mm}$ |
| Key Protections | Thermal Shutdown, Over-Voltage (OVP), Over-Current (OCP) |
Core Functions and Features
The SPU14P is not a simple voltage regulator; it is an intelligent system-on-a-chip (SoC) support component. SPU14P Mobile Phone IC
1. Power Distribution and Efficiency
The IC manages the conversion of raw battery voltage into stable “power rails” required by the CPU, GPU, and RAM.2 Its high efficiency (up to 95%) is vital for reducing heat generation and extending battery life in 5G-enabled devices which have higher power demands.3
2. RF Signal Conditioning
In models like the Samsung A53, the SPU14P plays a specialized role in the RF Front-End (RFFE).4 It acts as a bridge between the baseband processor and the antenna switch module, specifically optimizing LTE Band 1, 3, 5, and 7 frequencies.5
3. Protection Mechanisms
To prevent catastrophic motherboard failure, the IC includes:
-
Thermal Protection: Automatically throttles power if the chip exceeds $125\text{°C}$.
-
Soft Start: Gradually ramps up voltage to prevent “inrush current” from damaging sensitive silicon.
Common Usage & Repair Context
The SPU14P is a high-failure-rate component in devices subjected to heavy gaming or fast charging due to thermal stress.
-
Symptoms of Failure: No network signal (Baseband failure), device stuck on the logo, or complete “dead” power state.6
-
Compatibility: While it is common in the Samsung A53 (A536), it is also found in the Poco F3, X3 Pro, and Red Magic 5G.7 Note that it is often not interchangeable with the SPU13P due to different internal gain curves and biasing networks.8
Professional Note: Replacing this IC requires advanced BGA reballing skills. Using a hot air station at approximately 330°C to 350°C is standard for removal, but requires precise thermal shielding of surrounding components.
