SPU15Q Mobile Phone IC
Revolutionary Performance with SPU15Q Mobile Phone IC
Are you looking to elevate the efficiency, reliability, and overall functionality of your mobile devices? The SPU15Q Mobile Phone IC is engineered to meet the ever-evolving demands of smartphones today. This innovative integrated circuit (IC) offers unmatched compatibility and superior performance for manufacturers and tech enthusiasts alike. Whether you’re designing a new device or upgrading an existing one, this cutting-edge IC provides a seamless solution to optimize your hardware. SPU15Q Mobile Phone IC
Precision Technology for Modern Smartphones
The SPU15Q Mobile Phone IC is built with advanced technology to deliver top-tier performance in mobile devices. Designed to be compact without compromising power, this IC ensures peak operational efficiency while conserving energy; an ideal feature for phones prioritizing extended battery life. Furthermore, its robust design guarantees reliability even under high-stress conditions, making it an excellent choice for both mid-range and flagship smartphones. SPU15Q Mobile Phone IC
Unparalleled Compatibility and Versatility
One of the foremost highlights of the SPU15Q IC is its universal compatibility. It seamlessly integrates with various architectures and supports most modern phone configurations. Manufacturers will appreciate its ability to adapt to diverse product designs without significant modifications. Its versatility also makes it suitable for devices requiring high-speed processing and precision control systems, giving you endless opportunities to cater to your target audience.
The SPU15Q Mobile Phone IC is not just a component – it’s a statement of technological ingenuity. With the perfect balance of functionality and performance, this product allows smartphone developers to move beyond limitations and redefine possibilities. Dive into innovation, and equip your devices with SPU15Q to stay ahead in the competitive market. SPU15Q Mobile Phone IC

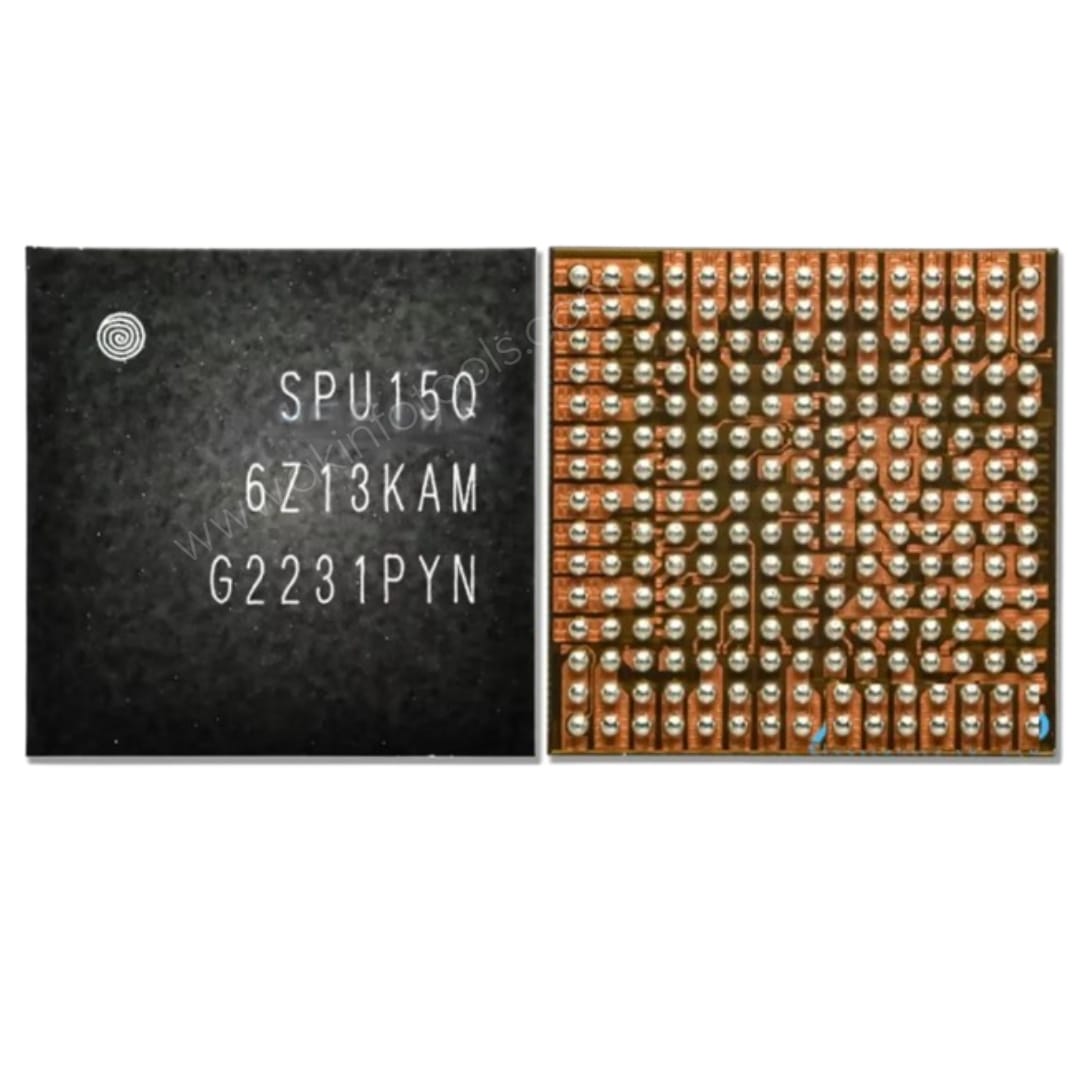

The SPU15Q is a specialized Power Management Integrated Circuit (PMIC) and DC/DC converter widely used in modern mid-range smartphones. Primarily manufactured as an OEM-grade component for Samsung devices, it plays a critical role in regulating power distribution from the battery to essential subsystems like the CPU (SoC), RAM, and RF modules. SPU15Q Mobile Phone IC
Below is the detailed technical specification and functional overview of the SPU15Q IC.
Technical Specifications Table
| Feature | Specification Details |
| Model Number | SPU15Q (Variant of SPU15 / S6566 series) |
| Component Type | Power Management Integrated Circuit (PMIC) |
| Primary Function | Multi-channel DC/DC Step-down Converter |
| Input Voltage Range | 2.8V – 4.5V (Standard Li-ion battery range) |
| Output Channels | 8 Regulated Rails (Buck/LDO) |
| Core Voltage (Vcore) | 0.8V – 1.1V (Dynamic scaling supported) |
| I/O & Memory Voltage | 1.8V (LDO) / 1.1V (VDD_DRAM) |
| Max Current Capacity | Up to 1.3W sustained; ~2A peak per rail |
| Package Type | WLCSP-48 / BGA (Ball Grid Array) |
| Pin Count | 48 Pins |
| Pin Pitch | 0.4mm |
| Operating Temperature | 0°C to 100°C |
| Thermal Protection | Internal shutdown threshold at ~135°C |
| Compatibility | Samsung Galaxy A14, A25, A35, A54 (Early models) |
Key Features & Capabilities
1. High-Efficiency Regulation
The SPU15Q utilizes Synchronous Rectification architecture. This allows it to convert high-voltage battery current into low-voltage power for digital logic with minimal heat dissipation. It is specifically optimized for the Exynos 1380 and Exynos 850 chipsets to ensure stable clock domains.
2. Multi-Rail Management
Modern smartphones require multiple independent voltage levels. The SPU15Q manages:
-
VCC_CORE: Powers the main processor cores.
-
VDD_DRAM: Dedicated stable power for LPDDR memory.
-
CAM_AVDD: Regulated 2.8V for camera sensors.
-
RF_LNA: Low-noise power for 5G/LTE signal amplifiers.
3. Protection & Stability
The IC features a Bias Voltage Precision of $\pm 2\%$, which is significantly tighter than generic clones. It includes integrated over-voltage protection (OVP) and thermal throttling mechanisms that prevent the motherboard from shorting out during high-load tasks like gaming or 4K video recording.
Common Symptoms of Failure
Because the SPU15Q is the “gatekeeper” of power, a fault in this chip often mimics a “dead” motherboard. Typical failure signs include:
-
No Power/Boot: The device refuses to turn on even with a healthy battery.
-
Random Restarts: Sudden shutdowns when opening power-intensive apps (Camera/GPS).
-
Connectivity Drops: Intermittent Wi-Fi or Bluetooth failures because the RF power rail is unstable.
-
Charging Issues: The phone may stop charging at a specific percentage or show “Battery Overheating” errors despite being cool to the touch.
Repair Note
Replacement of the SPU15Q requires advanced micro-soldering skills. Due to its BGA (Ball Grid Array) design and 0.4mm pin pitch, a hot-air rework station and a microscope are essential to avoid bridging the 48 pins during installation.
