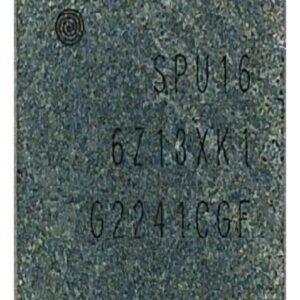

SPU16 Mobile Phone IC
Introducing the SPU16 Mobile Phone IC
The SPU16 Mobile Phone IC is a high-quality, reliable integrated circuit designed to enhance the performance of mobile devices. With state-of-the-art engineering and optimal functionality, this IC offers easy integration into various smartphone models, making it an ideal choice for manufacturers and developers looking for dependable solutions to improve device efficiency and functionality. SPU16 Mobile Phone IC
Exceptional Features for Superior Performance
The SPU16 Mobile Phone IC boasts cutting-edge features that prioritize speed, durability, and compatibility. Whether you need enhanced power management, improved signal processing, or superior thermal performance, this IC delivers. It also ensures seamless communication within the mobile device’s components, offering an unmatched user experience. Its compact design makes it easy to incorporate, while maintaining high efficiency and minimal power consumption. SPU16 Mobile Phone IC
A Smart Choice for Developers and Manufacturers
Engineered to meet the rigorous demands of modern mobile applications, the SPU16 Mobile Phone IC guarantees robust performance in varying environments. This product is suitable for use in contemporary smartphones, advanced IoT systems, and innovative wearable technologies. Its adaptability across different mobile platforms reduces development time and scales production, helping you create reliable and durable devices. Choose the SPU16 Mobile Phone IC to bring your innovative ideas to life. SPU16 Mobile Phone IC
The SPU16 is a specialized Power Management Integrated Circuit (PMIC) designed primarily for modern mobile devices, including the Samsung Galaxy series and select iOS devices (often cross-referenced as PM6450 in certain schematics).1 It serves as a high-efficiency voltage regulator and power distribution hub, managing critical rails for the CPU, GPU, and battery charging systems.2
Core Functionality
The SPU16 is a “drop-in” successor to the SPU15 and SPU15Q series.3 It is engineered to handle the high-current demands of mobile processors while maintaining a small footprint. Its primary role is to convert the battery’s fluctuating voltage into stable, low-noise power for sensitive internal components. SPU16 Mobile Phone IC`
Technical Specifications
| Feature | Specification Details |
| Component Type | Power Management Integrated Circuit (PMIC) |
| Common Application | Samsung Galaxy A14/A25/A54, iPhone 8/X (Repair equivalent) |
| Input Voltage Range | $3.0\text{V}$ to $28\text{V}$ DC |
| Max Output Current | $2.0\text{A}$ (sustained) |
| Switching Frequency | $1.2\text{MHz} \pm 10\%$ |
| Regulation Accuracy | $\pm 1.5\%$ to $\pm 2\%$ under load |
| Package Type | SOP-16 / SOT-23-6 (depending on revision/mounting) |
| Quiescent Current | $<1\mu\text{A}$ (Standby mode) |
| Thermal Shutdown | $150^\circ\text{C}$ threshold |
| Efficiency | $\approx 89\%$ (at $12\text{V}$ In / $5\text{V}$ Out) |
Pin Configuration & Layout
In standard mobile repair contexts, the SPU16 utilizes a 6-pin or 16-pin layout depending on the specific board implementation. The most common 6-pin diagnostic layout is as follows:
-
EN (Enable): High-active logic to wake the IC.4
-
VIN (Input): Main power entry from the battery or charging port.
-
SW (Switching): Connection to the external inductor for buck conversion.
-
GND (Ground): Common reference point.5
-
FB (Feedback): Monitors output voltage for closed-loop regulation.
-
OUT/NC: Regulated output or No Connection depending on the PCB trace.
Key Performance Features
-
Enhanced Stability: Unlike its predecessors, the SPU16 features tighter tolerance on the bandgap reference circuit, which prevents “false low-battery” shutdowns.6
-
Pulse Skip Mode: This allows the IC to remain highly efficient even when the phone is in a deep sleep or idle state by reducing switching cycles.
-
Integrated Protections: It includes built-in Over-Current Protection (OCP) and Over-Voltage Protection (OVP) to safeguard the application processor from power surges.7
Installation & Repair Notes
Replacing an SPU16 requires professional BGA/SMD soldering skills.8 Because these chips are often located near the CPU or NAND flash, heat management is critical.9
-
Recommended Air Temp: $330^\circ\text{C}$ to $350^\circ\text{C}$ (depending on the station).
-
Failure Symptoms: Device won’t turn on, “dead” short on the primary power rail (10$V_{bat}$), or charging stopping abruptly at a specific percentage.11
