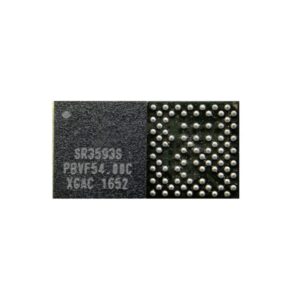

SR 3593S Mobile Phone IC
High-Performance Solution for Mobile Devices
The SR 3593S Mobile Phone IC is a cutting-edge component designed to enhance the efficiency and reliability of mobile devices. Engineered with precision, this IC provides seamless integration into modern designs, addressing the demands of performance-driven applications.
Compact Design with Powerful Capabilities
Featuring a compact form factor, the SR 3593S Mobile Phone IC maximizes functionality within minimal space. Its advanced architecture ensures low power consumption, which is essential for energy-efficient devices, enhancing battery life while maintaining peak performance.
Reliable and Durable Component
Designed to meet stringent quality standards, the SR 3593S IC is built for durability and long-term reliability. It is compatible with various platforms, making it an ideal choice for developers and manufacturers looking for a trusted solution.
The SR 3593S is a specialized Integrated Circuit (IC) primarily utilized in the Radio Frequency (RF) and baseband sections of mobile devices. It is most commonly found in Samsung’s budget and mid-range “J” and “G” series smartphones.
The SR 3593S serves as an Intermediate Frequency (IF) / Baseband IC. Its primary role is to act as a bridge between the high-frequency signals received by the antenna and the low-frequency baseband signals processed by the phone’s CPU. It handles frequency conversion, ensuring that the mobile network signal is stable enough for voice and data transmission.
Technical Specifications: SR 3593S
| Feature | Specification Details |
| Model Number | SR 3593S |
| Component Type | Intermediate Frequency (IF) / Baseband IC |
| Function | Signal Processing, RF Frequency Conversion |
| Common Application | Mobile Communication & Network Signal Management |
| Material | High-Grade Semiconductor Silicon |
| Compatible Brands | Samsung (J Series, G Series), Spreadtrum-based chipsets |
| Package Type | BGA (Ball Grid Array) |
| Primary Voltage | Typically 1.8V / 2.8V (Varies by motherboard design) |
| Pins/Pads | High-density underside pins for surface mounting |
| Thermal Stability | High-temperature resistance for stable RF performance |
Key Functional Roles
The SR 3593S is essential for the “Radio Chain” of a smartphone. Here is a breakdown of its core responsibilities:
-
Intermediate Frequency (IF) Processing: It converts high-frequency RF signals down to a lower Intermediate Frequency (IF) that the baseband processor can more easily digitize.
-
Signal Filtering: It helps in filtering out noise and interference, ensuring a clear signal for both incoming and outgoing calls.
-
Baseband Management: It assists in managing the data flow between the transceiver and the main processor, which is vital for maintaining a 3G/4G data connection. SR 3593S Mobile Phone IC
-
Network Stability: It regulates the signal strength to prevent sudden “Searching…” or “No Service” errors on the device. SR 3593S Mobile Phone IC
Common Use Cases and Compatibility
This IC is widely stocked by mobile repair professionals because it is a common failure point in older Samsung models. If a device exhibits signal drops despite a healthy antenna, this chip is often the culprit.
Compatible Samsung Models:
-
Samsung Galaxy J5 (J500F, J500H, J500M)
-
Samsung Galaxy J2 (J210F)
-
Samsung Galaxy J3 (J320F)
-
Samsung Galaxy Core 2 (G355H)
Signs of a Faulty SR 3593S IC
When this IC fails or has a “dry solder” (loose connection), the device will typically show the following symptoms: SR 3593S Mobile Phone IC
-
Weak Network Signal: The phone shows only one bar or fluctuates constantly even in high-coverage areas. SR 3593S Mobile Phone IC
-
Call Dropping: Frequent disconnection during active voice calls. SR 3593S Mobile Phone IC
-
No Service Error: The phone fails to register on any network provider. SR 3593S Mobile Phone IC
-
Overheating near RF Section: The area of the motherboard containing the IF IC becomes unusually hot during network-intensive tasks. SR 3593S Mobile Phone IC
Repair & Installation Note
Replacing the SR 3593S requires advanced SMD (Surface Mount Device) soldering skills. Since it is a BGA-style chip, it must be “reballed” or installed using a hot air rework station at precise temperatures (usually between 320°C to 350°C) to avoid damaging the surrounding motherboard components. SR 3593S Mobile Phone IC
