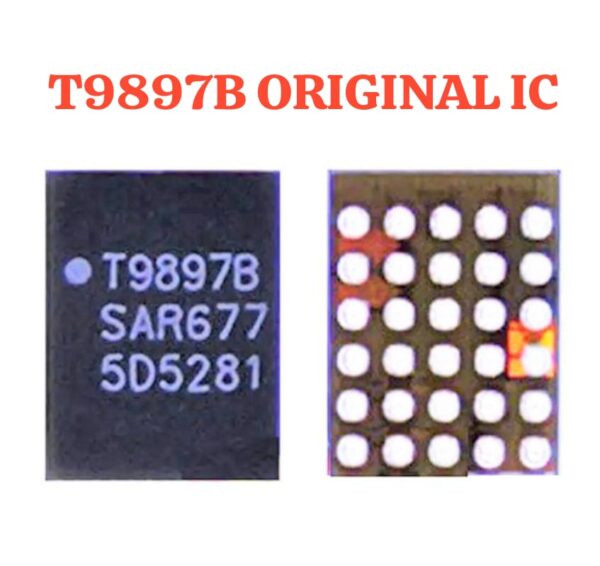

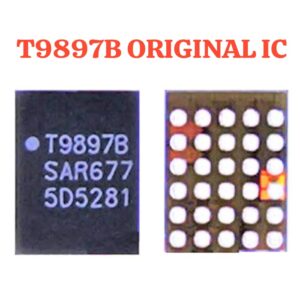

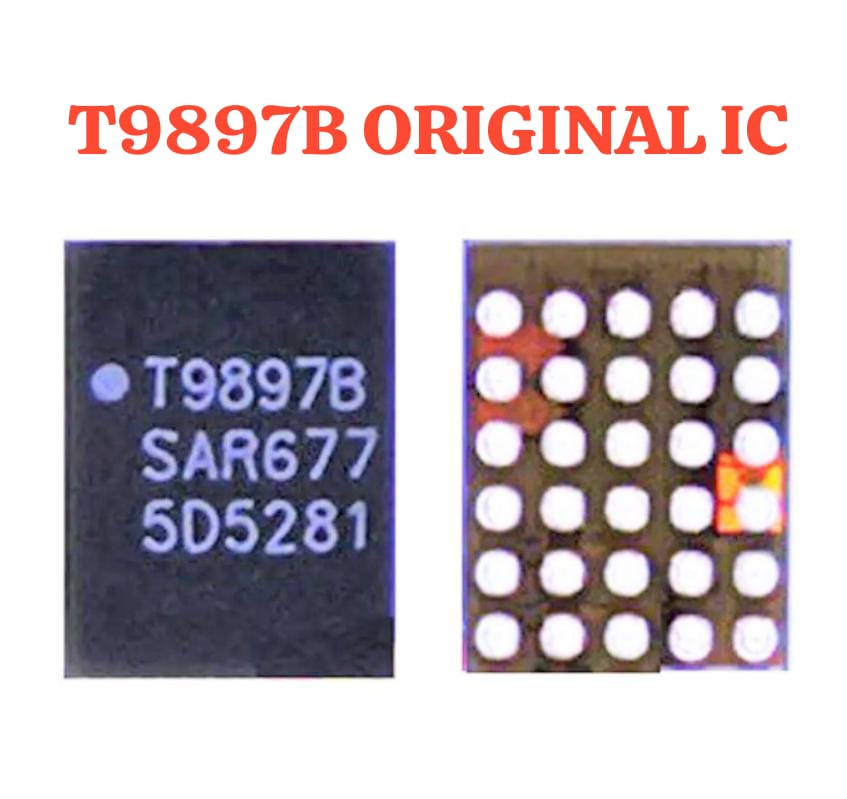

T9897B ORIGINAL Mobile Phone IC
Reliable Mobile Phone IC for Optimal Performance
The T9897B ORIGINAL Mobile Phone IC is engineered to deliver precision and efficiency for your mobile device. Whether you’re repairing or upgrading your phone, this IC ensures seamless functionality and long-lasting reliability. T9897B ORIGINAL Mobile Phone IC
Premium Quality and Compatibility
Designed with advanced technology, the T9897B IC supports a wide range of mobile phone models. Its durable construction and superior materials guarantee consistent performance, meeting the highest industry standards. T9897B ORIGINAL Mobile Phone IC
Perfect Solution for Mobile Device Repairs
If you are looking for an authentic and high-quality component for your mobile devices, the T9897B ORIGINAL Mobile Phone IC is your go-to choice. Its exceptional compatibility and functionality make it ideal for keeping your device running smoothly. T9897B ORIGINAL Mobile Phone IC
The T9897B is a specialized Integrated Circuit (IC) primarily used in mobile devices as an Audio Amplifier and Ringing Buzzer Chip. While it is frequently found in mid-range Samsung Galaxy and Huawei devices, it is a critical component for managing high-power audio outputs, such as loudspeaker volume and ringtone clarity. T9897B ORIGINAL Mobile Phone IC
Below are the full technical specifications and details for the T9897B IC. T9897B ORIGINAL Mobile Phone IC
Technical Specifications Table
| Feature | Specification Details |
| Model Number | T9897B |
| Component Category | Audio Power Amplifier / Codec IC |
| Primary Function | Loudspeaker Driver & Ringtone Management |
| Compatible Brands | Samsung, Huawei, Xiaomi, Oppo |
| Number of Pins | 30-Pin BGA (Ball Grid Array) |
| Package Type | SMD / BGA (Surface Mount Device) |
| Supply Voltage ($V_{dd}$) | Typical: 1.8V to 5.0V |
| Signal Input | Digital (I2S/PCM) and Analog |
| Internal Logic | Built-in Digital Signal Processing (DSP) |
| Operating Temperature | -40°C to +85°C (Standard Industrial Grade) |
| Package Dimensions | Compact Micro-BGA Form Factor |
| Reliability Standard | OEM Grade / QC Passed |
Core Functionality and Application
The T9897B is often referred to in the repair industry as the “Chord IC” or “Ringing IC.” Unlike the main audio codec that handles headphone jacks or microphones, the T9897B is a high-efficiency power stage designed to drive the internal speaker of a smartphone.
1. Audio Amplification
The IC acts as a bridge between the low-power audio signal from the phone’s processor and the physical speaker. It utilizes Class-D amplification technology to provide high volume with minimal heat generation, which is essential for the compact environment of a mobile motherboard. T9897B ORIGINAL Mobile Phone IC
2. Ringing and Buzzer Management
Its primary role in Samsung devices (like the A3, A5, and A8 series) is to control the “Buzzer” (loudspeaker). If a phone has no sound during media playback or calls, but the headphones work fine, the T9897B is usually the culprit.
3. Digital Signal Processing (DSP)
Modern variants of the T9897B include basic DSP capabilities, allowing for:
-
Dynamic Range Compression (DRC): Preventing speaker “crackling” at high volumes. T9897B ORIGINAL Mobile Phone IC
-
Noise Gate: Eliminating “hiss” during silent periods in audio tracks. T9897B ORIGINAL Mobile Phone IC
-
Thermal Protection: Automatically lowering output if the chip exceeds safe temperatures. T9897B ORIGINAL Mobile Phone IC
Device Compatibility List
The T9897B is widely utilized across several generations of mobile hardware. It is most commonly found in the following models:
-
Samsung Galaxy Series: A3 (A310), A5 (A510), A8, A9, A320. T9897B ORIGINAL Mobile Phone IC
-
Huawei P & Mate Series: P60, Pura 70, Mate 50 (often listed as a secondary audio driver). T9897B ORIGINAL Mobile Phone IC
-
Jio Phone: Specifically the Jio F220B and similar feature phones use this IC for their loud audio requirements. T9897B ORIGINAL Mobile Phone IC
Troubleshooting and Repair Insights
If you are a technician working with this IC, here are the most common symptoms of a failing T9897B:
-
No Sound from Loudspeaker: The most common sign. The phone may still vibrate and work with Bluetooth, but the internal speaker is dead.
-
Distorted Audio: Audio sounds “robotic” or static-filled, indicating a breakdown in the IC’s internal processing logic.
-
Overheating: A short circuit within the T9897B can cause a localized “hot spot” on the motherboard, often leading to rapid battery drain.
Note on Installation: Because the T9897B is a 30-pin BGA chip, replacement requires a professional hot-air rework station. The solder balls under the chip must be perfectly aligned with the pads on the PCB. It is recommended to use a high-quality flux and set the air temperature between 320°C and 350°C for safe removal and installation.
Comparative Analysis: T9897B vs. T9895
The T9897B is an upgraded version of the older T9895. While they share similar footprints, the T9897B offers:
-
Higher Output Power: Capable of driving 2W+ speakers compared to the 1.5W limit of earlier models.
-
Better Efficiency: Lower idle current, which slightly improves battery life during long periods of music playback.
-
Enhanced Protection: Improved short-circuit protection against moisture ingress in the speaker port.
