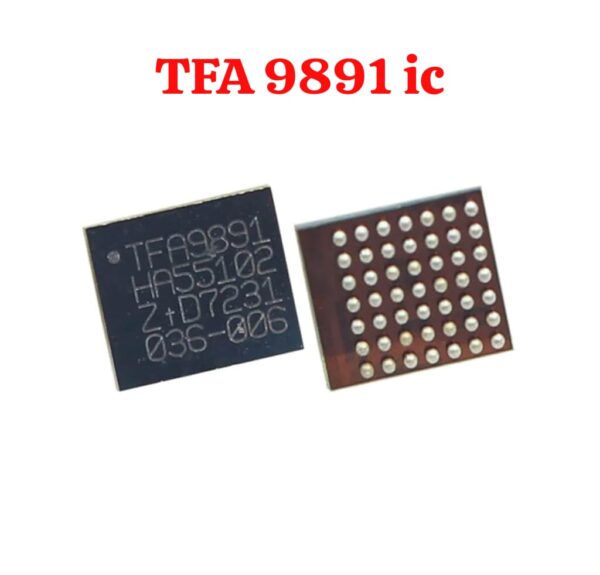

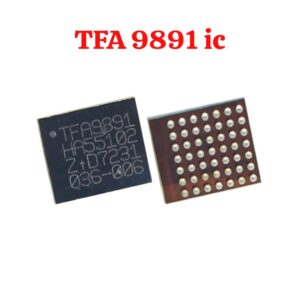

TFA 9891 Mobile Phone IC
Enhance Mobile Performance with TFA 9891
The TFA 9891 Mobile Phone IC is designed to deliver outstanding performance and reliability for modern mobile devices. Whether powering essential functionalities or enhancing device efficiency, this advanced integrated circuit ensures optimal results in every application. TFA 9891 Mobile Phone IC
Advanced Features for Maximum Efficiency
Engineered with cutting-edge technology, the TFA 9891 IC offers superior energy efficiency, ensuring prolonged battery life for smartphones without compromising on functionality. Its compact design allows seamless integration into mobile hardware, giving you exceptional performance in a small form factor. TFA 9891 Mobile Phone IC
Reliable and Durable Solution
Built for durability and stability, the TFA 9891 Mobile Phone IC is a dependable choice for mobile manufacturers and repair specialists. Its robust design and compatibility with multiple systems make it the go-to solution for enhancing your devices’ performance. TFA 9891 Mobile Phone IC
The TFA9891 is a high-efficiency Class-D audio amplifier integrated circuit (IC) manufactured by NXP Semiconductors. It is widely used in high-end smartphones (such as those from Xiaomi, Meizu, and Vivo) to drive micro-speakers with high output power while providing advanced protection against thermal and mechanical damage. TFA 9891 Mobile Phone IC
Below is the comprehensive technical breakdown and specification guide for the TFA9891. TFA 9891 Mobile Phone IC
1. Technical Overview
The TFA9891 is more than just a simple amplifier; it is a Smart Audio System. It features an internal DC-to-DC boost converter that raises the typical battery voltage (3.6V) to 9.5V. This allows the IC to deliver significantly higher volume and deeper bass from small mobile speakers without causing “clipping” or hardware failure.
2. Full Specifications Table
| Feature | Specification Details |
| Manufacturer | NXP Semiconductors |
| IC Type | Class-D Audio Amplifier (Mono) |
| Package Type | 49-bump WLCSP (Wafer Level Chip-Size Package) |
| Package Dimensions | 3.43 mm x 2.98 mm |
| Internal Boost Voltage | 9.5 V (Programmable) |
| Peak Output Power | 7.2 W (into 8 $\Omega$ at 3.6 V supply) |
| Continuous Output Power | 3.6 W to 3.7 W |
| Supply Voltage Range | 2.7 V to 5.5 V |
| Audio Interface | I²S (Inter-IC Sound) |
| Control Interface | I²C (Inter-Integrated Circuit) |
| Sampling Rates Supported | 8 kHz to 48 kHz (Standard), up to 96 kHz |
| Total Harmonic Distortion (THD+N) | 0.03% (Typical) |
| Operating Temperature | -40°C to +85°C |
| Signal-to-Noise Ratio (SNR) | >100 dB |
| Quiescent Current | ~20 mA |
| ESD Protection | Up to 15 kV (System level) |
3. Key Advanced Features
The “Smart” aspect of the TFA9891 comes from its embedded digital signal processing (DSP) and protection algorithms.
-
Adaptive Sound Maximizer (SAM): This algorithm monitors the speaker’s excursion (how far the diaphragm moves) and temperature in real-time. It allows the speaker to play at its physical limit without tearing the cone or burning the voice coil.
-
Dynamic Range Compressor (DRC): Prevents audio distortion at high volumes by managing the peaks and valleys of the audio signal.
-
Battery Protection: As the phone battery gets low, the IC intelligently reduces power consumption to prevent the system from shutting down due to voltage dips.
-
Low RF Susceptibility: Designed to be immune to the electromagnetic interference common in mobile phones (GSM/LTE noise).
4. Application and Pin Configuration
The TFA9891 is typically found near the bottom or top speaker modules on a phone’s motherboard. In stereo configurations, a manufacturer will use two TFA9891 ICs—one for the left channel and one for the right.
Common Pin Groups (WLCSP-49)
-
Power Pins: VDDD (Digital supply), VDDp (Power supply for the boost converter).
-
Audio Pins: DATAIN (I²S data input), BCK (Bit clock), WS (Word select/LRCK).
-
Control Pins: SDA/SCL (I²C data and clock lines for settings).
-
Output Pins: OUTP/OUTN (Differential speaker outputs).
5. Typical Usage Scenarios
-
Xiaomi/Redmi Series: Used in models like the Redmi Pro and Mi 5S to enhance the “Loudspeaker” mode.
-
Vivo X-Series: Integrated into the “Hi-Fi” audio path to drive high-impedance headphones or premium internal speakers.
-
Meizu Devices: Frequently used in Meizu Max and MX series for superior acoustic performance.
Note for Technicians: When replacing this IC, it is highly sensitive to heat. Since it is a BGA/WLCSP package, it requires a professional SMD rework station and high-quality flux. Ensure the “dot” (Pin 1 indicator) is aligned correctly with the motherboard marking before soldering.
