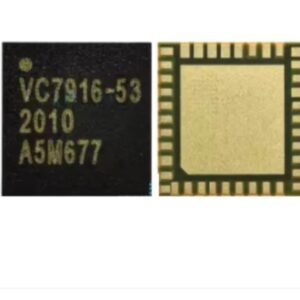

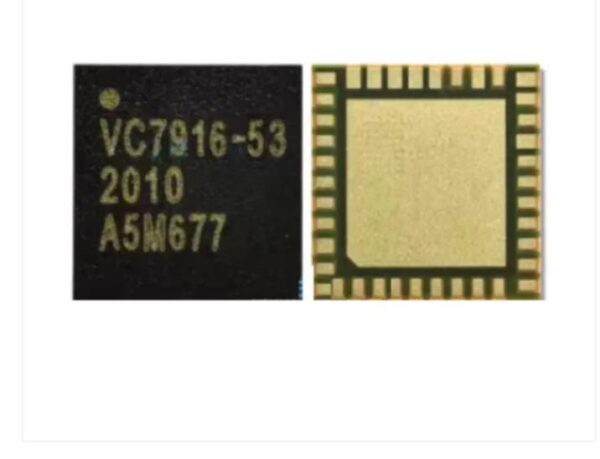

VC7916 53 Mobile Phone IC
Powerful Performance in a Compact Component
The VC7916 53 Mobile Phone IC is designed to deliver exceptional performance and unmatched reliability for your mobile devices. Built to ensure smooth operation, this integrated circuit delivers efficient energy usage while maintaining top-tier functionality for enhanced user experience. VC7916 53 Mobile Phone IC
Seamless Integration for Versatile Applications
Engineered for versatility, the VC7916 53 Mobile Phone IC easily integrates with an array of mobile device designs. Its robust compatibility and adaptability make this component a dependable choice for manufacturers seeking seamless functionality in their products. VC7916 53 Mobile Phone IC
Trusted Quality for Long-Term Dependability
Crafted using advanced manufacturing processes, this high-quality IC stands out for its durability and consistent performance. Choose the VC7916 53 Mobile Phone IC to ensure superior performance and long-term reliability for your devices. VC7916 53 Mobile Phone IC
The VC7916-53 is a high-performance Power Amplifier (PA) Integrated Circuit, specifically a Radio Frequency (RF) Front-End Module (FEM). Manufactured by Vanchip Technologies, this IC is a critical component in the network section of modern smartphones, including popular models from Samsung, Realme (like the 7i), Oppo, and Xiaomi. VC7916 53 Mobile Phone IC
Its primary role is to amplify weak radio signals so they can be transmitted through the antenna to cellular towers, ensuring stable 2G, 3G, and 4G connectivity. VC7916 53 Mobile Phone IC
VC7916-53 Full Technical Specifications
| Feature Category | Technical Specification Detail |
| Model Number | VC7916-53 |
| IC Type | Power Amplifier (PA) / RF Front-End Module (FEM) |
| Manufacturer | Vanchip Technologies |
| Supported Bands | Quad-band GSM (850/900/1800/1900 MHz) |
| Modes Supported | GPRS Class 12, Linear EDGE, and Multi-mode LTE |
| Package Dimensions | $5.5 \times 5.3 \times 0.83 \text{ mm}$ |
| Package Type | WLCSP / SMD (Surface Mount Device) |
| Supply Voltage ($V_{cc}$/$V_{batt}$) | $3.1\text{V}$ to $4.35\text{V}$ (Typical $3.5\text{V}$) |
| Control Interface | MIPI RFFE Digital Interface (1.8V Logic) |
| Max Output Power | $\approx 34\text{ dBm}$ (GSM850/900), $\approx 32\text{ dBm}$ (DCS/PCS) |
| ESD Protection | $8\text{ kV}$ at Antenna Port |
| Operating Temperature | $-25^\circ\text{C}$ to $+85^\circ\text{C}$ |
| Max Junction Temp | Up to $+125^\circ\text{C}$ |
| Harmonic Suppression | Integrated Low Pass Transmit Filter |
Core Functional Analysis
1. Multi-Band Amplification
The VC7916-53 is designed for versatility. It handles both Low-Band (GSM850/900) and High-Band (DCS1800/PCS1900) signals. It uses an advanced HBT (Heterojunction Bipolar Transistor) process to provide high gain with low power consumption, which is essential for preserving smartphone battery life during long calls or data usage. VC7916 53 Mobile Phone IC
2. MIPI RFFE Interface
Unlike older analog PAs, the VC7916-53 uses the MIPI RFFE (Radio Frequency Front End) digital interface. This allows the phone’s primary processor to communicate directly with the IC to switch between frequency bands and adjust power levels instantly. This precision reduces “signal dropping” when moving between different network coverage areas. VC7916 53 Mobile Phone IC
3. Integrated Filtering
The IC features a built-in Low Pass TX Harmonic Filter. This is vital for network compliance, as it prevents the phone from transmitting “noise” or interference that could disrupt other electronic devices or other cellular bands.
Common Symptoms of Faulty VC7916-53
In the mobile repair industry, this IC is often replaced when the phone exhibits the following issues:
-
No Service / Searching: The phone cannot find a network even with a valid SIM card.
-
Weak Signal: The signal bars are very low or fluctuate wildly.
-
Fast Battery Drain on Mobile Data: If the PA is partially shorted, it will consume excessive current when the 4G/LTE data is switched on.
-
Device Heating: A damaged VC7916-53 often gets extremely hot near the antenna section of the motherboard.
Professional Repair & Replacement Guide
Replacing the VC7916-53 requires precision soldering (BGA Rework).
-
Diagnosis: First, check the VPH_PWR line. If there is a short near the PA, the phone may not even turn on.
-
Heat Management: Use a professional hot air station set between $330^\circ\text{C}$ to $350^\circ\text{C}$. Apply high-quality flux to prevent oxidation.
-
Alignment: The IC is a 128-ball or similar SMD package. Ensure the “Pin 1” marker matches the motherboard’s dot.
-
Verification: After soldering, check the resistance on the surrounding capacitors to ensure no bridges were created during the process.
