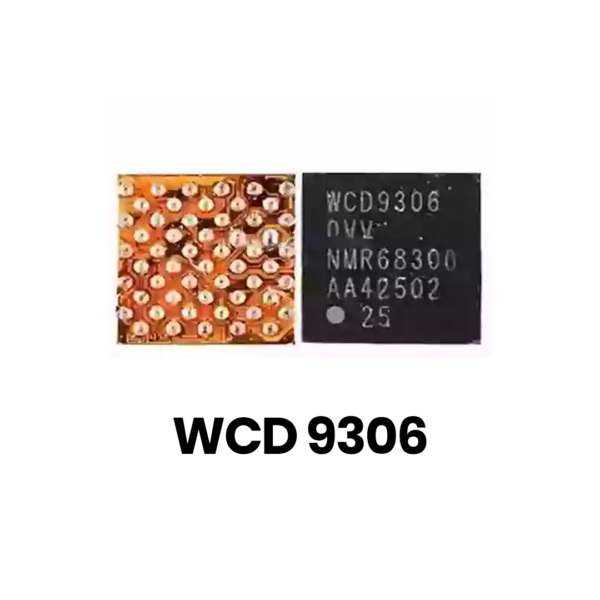

WCD 9306 Mobile Phone IC
Enhance Your Device’s Performance with WCD 9306
The WCD 9306 Mobile Phone IC is a cutting-edge solution designed to boost the performance and efficiency of your mobile device. Engineered with precision and reliability in mind, this integrated circuit is perfect for mobile phone manufacturers, repair technicians, and enthusiasts who demand unparalleled audio and processing quality. Whether you’re looking to enhance audio clarity, improve overall functionality, or replace a faulty IC, the WCD 9306 offers a high-quality solution you can trust. WCD 9306 Mobile Phone IC
Designed for Versatility and Efficiency
Crafted for compatibility with a variety of smartphone models, the WCD 9306 is both versatile and efficient. This component integrates seamlessly into your device’s architecture, ensuring optimal functionality without compromising battery life. Its advanced design minimizes power consumption while maintaining top-notch performance, making it an ideal choice for modern mobile phone systems.
Additionally, the WCD 9306 Mobile Phone IC is manufactured using high-quality materials to ensure durability and long-lasting reliability. Whether you’re involved in large-scale device production or minor repairs, this IC guarantees consistent results that meet your high standards.
Why Choose the WCD 9306 Mobile Phone IC?
When it comes to mobile phone components, quality and precision matter. The WCD 9306 Mobile Phone IC stands out as a reliable and efficient choice for several reasons:
- High Performance: Supports superior audio and device functionality for seamless user experiences.
- Energy Efficient: Reduces power consumption to extend device battery life.
- Wide Compatibility: Fits in various smartphone models, ensuring flexibility and ease of use.
- Durable Build: Built with premium materials for long-lasting performance.
Whether you’re designing a new smartphone, repairing an existing one, or upgrading components, the WCD 9306 Mobile Phone IC offers a dependable, high-performance solution. Its reliable framework ensures minimal maintenance and exceptional results with every application. WCD 9306 Mobile Phone IC
Empower Your Devices Today
In conclusion, the WCD 9306 Mobile Phone IC is your go-to solution for high-performance, efficient, and versatile mobile device components. Experience the benefits of enhanced functionality, energy-efficient design, and long-lasting durability. Make the WCD 9306 an essential part of your mobile phone hardware today and elevate your devices to the next level.
The Qualcomm WCD9306 is a highly integrated Audio Codec IC (Integrated Circuit) designed primarily for mobile devices, particularly those utilizing the Qualcomm Snapdragon processor family (such as the Redmi Note 3). It functions as the central hub for processing all analog and digital audio signals within the smartphone. WCD 9306 Mobile Phone IC
Below are the detailed specifications and functional breakdown of the WCD9306. WCD 9306 Mobile Phone IC
WCD9306 Technical Specifications
| Feature | Specification Details |
| Manufacturer | Qualcomm Technologies, Inc. |
| Type | Audio Codec / Sound IC |
| Packaging | 55-pin WLNSP (Wafer Level Nano Scale Package) |
| Interface Support | SLIMbus, I2C, I2S, and MIPI RFFE |
| Audio Channels | Multichannel Digital-to-Analog (DAC) and Analog-to-Digital (ADC) |
| Microphone Inputs | Supports up to 3–4 Analog/Digital Mics with Noise Cancellation |
| Operating Temperature | $-40\text{°C}$ to $+85\text{°C}$ |
| Power Consumption | Ultra-low power mode for “Always-on” Voice Activation |
| Key Applications | Smartphones, IoT Modules (e.g., TurboX T95), Wearables |
Core Functional Breakdown
The WCD9306 is not just a simple converter; it manages the entire audio path of the mobile device.
1. Digital-to-Analog Conversion (DAC)
The IC converts digital audio data from the processor into high-fidelity analog signals for the earpiece, loudspeaker, and headset. It includes integrated Class-D or Class-H amplifiers to drive these components efficiently while preserving battery life.
2. Analog-to-Digital Conversion (ADC)
When you speak into the phone or record a video, the WCD9306 converts the analog waves from the microphones into digital data. It features high Dynamic Range (DR) and Signal-to-Noise Ratio (SNR) to ensure clear voice calls even in windy or loud environments.
3. Voice Activation and “Always-on” Support
A standout feature of the WCD9306 is its support for Low Power Voice Activation. This allows the phone to “listen” for trigger words (like “Hey Google”) with minimal drain on the battery, as it processes the audio trigger locally within the IC rather than waking up the main CPU.
Usage and Replacement Guide
In the mobile repair industry, the WCD9306 is a common “Sound IC” replacement. Issues with this chip typically manifest as:
-
No sound from the loudspeaker or earpiece despite software resets.
-
The microphone not picking up any sound during calls.
-
The phone hanging or crashing specifically when audio apps are opened.
Repair Note: Because this IC uses a BGA (Ball Grid Array) or WLNSP mounting style, replacement requires professional SMD soldering tools, such as a hot air rework station and high-quality flux. It is a sensitive component that can be damaged by excessive heat ($>350\text{°C}$ for prolonged periods).
Comparison with Related Models
While the WCD9306 is optimized for mid-range and IoT efficiency, it belongs to a larger family:
-
WCD9302: A simplified version often found in budget devices.
-
WCD9320/9335: Higher-end versions used in flagship Snapdragon 800-series devices, offering 24-bit/192kHz Hi-Fi audio support.
