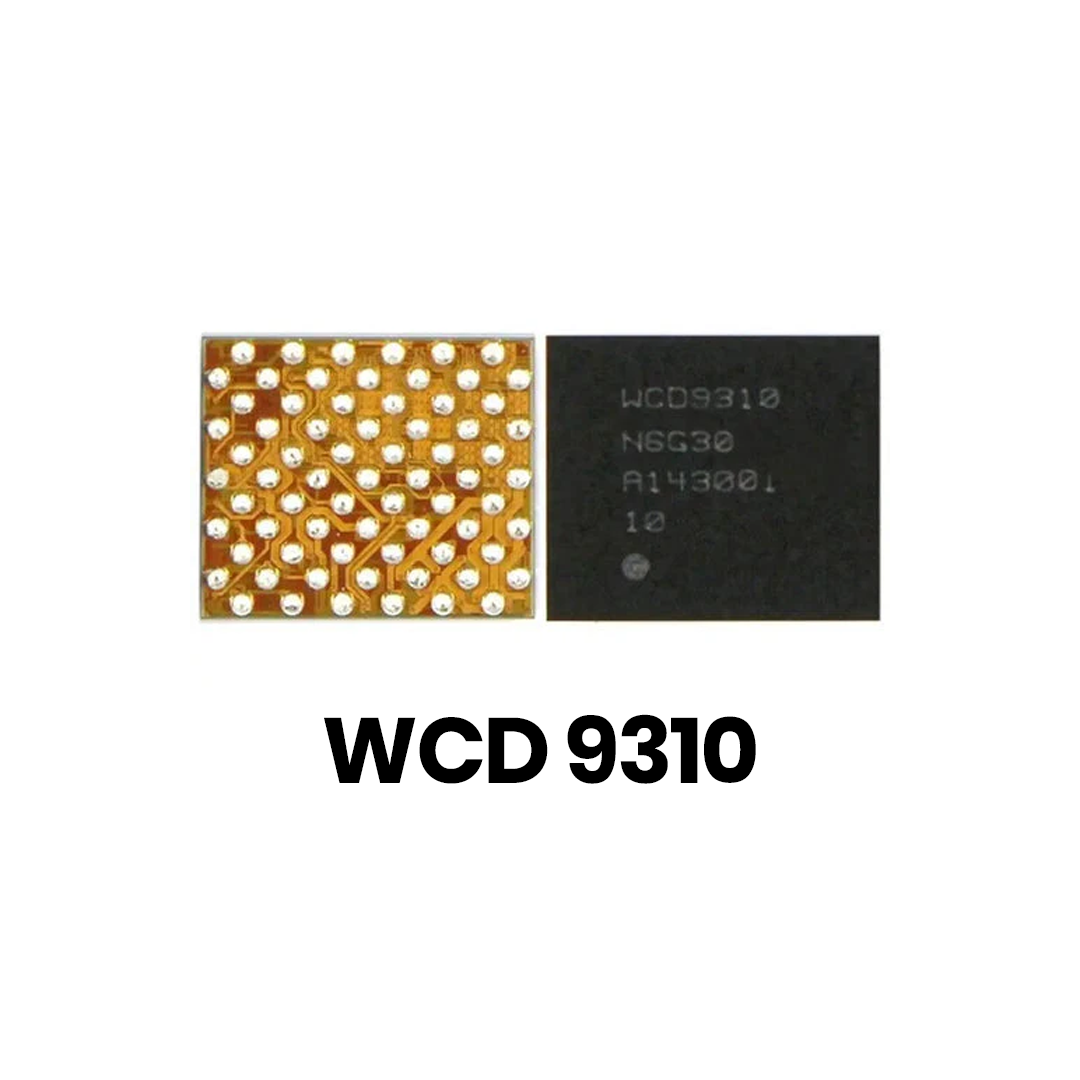

WCD 9310 Mobile Phone IC
Introducing the WCD 9310 Mobile Phone IC
The WCD 9310 Mobile Phone IC is a cutting-edge integrated circuit specifically designed to elevate your mobile phone’s performance and efficiency. With remarkable processing capabilities and advanced engineering, this IC is tailored to meet the demands of modern smartphones, ensuring seamless communication, faster data processing, and enhanced audio quality. Whether you’re a manufacturer, a technical expert, or an enthusiast looking for high-quality mobile components, the WCD 9310 IC is your ideal solution. WCD 9310 Mobile Phone IC
Superior Functionality and Performance
Built to deliver uncompromising performance, the WCD 9310 excels in improving voice call quality and optimizing essential communication processes. Its advanced architecture is engineered to handle high-frequency signals with precision, providing crystal-clear audio and reliable cellular connectivity. Additionally, this IC supports a wide range of network protocols, making it compatible with various mobile platforms. Compact yet powerful, it’s perfectly suited for modern ultra-sleek smartphone models that demand both small size and high performance. WCD 9310 Mobile Phone IC
Why Choose the WCD 9310 Mobile Phone IC?
The WCD 9310 IC is more than just a component; it’s a cornerstone of innovation for mobile devices. By integrating this advanced IC into your designs, you ensure smoother operations, enhanced power efficiency, and an overall improved user experience. Its proven reliability and durability make it a trusted choice for manufacturers worldwide. Whether it’s for new product development or upgrading existing models, the WCD 9310 delivers consistent quality aligned with industry standards. WCD 9310 Mobile Phone IC
Specifications and Additional Benefits
Engineered with precision, the WCD 9310 features robust design specifications that make it resistant to environmental factors while maintaining excellent electrical performance. It provides extended functionality with low-power consumption, addressing the growing need for energy-efficient mobile solutions. This IC also simplifies manufacturing processes due to its compatibility with various fabrication methodologies, reducing development time and costs.
The Qualcomm WCD9310 is a highly integrated, high-performance audio codec IC (Integrated Circuit) that served as a cornerstone for mobile audio in the early-to-mid 4G smartphone era. Often referred to in repair circles simply as the “Audio IC,” it was a staple component in flagship devices like the Samsung Galaxy S4 and various Xiaomi models.
Below are the comprehensive specifications and technical details for the WCD9310. WCD 9310 Mobile Phone IC
Technical Specifications Table
| Feature Category | Specification Detail |
| Manufacturer | Qualcomm Technologies, Inc. |
| Model Number | WCD9310 (Part of the “Bolero” codec family) |
| Primary Function | Integrated Audio Codec (ADC/DAC) |
| Interface Type | SLIMbus (Serial Low-power Inter-chip Media Bus) |
| Package Type | 71-pin WLNSP (Wafer Level Nano Scale Package) |
| Encapsulation Format | BGA (Ball Grid Array) – 821 standard |
| Input Channels | Supports multiple Analog Mics & Digital Mic (DMIC) inputs |
| Output Channels | Stereo Headphone, Earpiece, and Line-out support |
| Resolution | Up to 24-bit audio depth |
| Sampling Rates | Supports 8, 16, 32, 44.1, and 48 kHz |
| Signal-to-Noise Ratio | ~100 dB (Typical for high-tier mobile codecs of its gen) |
| Operating Temperature | -40°C to +85°C |
| Power Management | Integrated LDOs for noise-sensitive analog rails |
Architectural Overview
The WCD9310 is designed to bridge the gap between the digital signal processor (DSP) within the Snapdragon SoC and the physical audio components of the phone. Unlike simpler codecs, the WCD9310 handles complex routing, allowing the device to manage multiple audio streams simultaneously—such as recording from a secondary noise-canceling microphone while playing high-fidelity music.
Key Features
-
SLIMbus Integration: It uses the industry-standard SLIMbus interface, which allows for extremely low-power communication between the application processor and the codec. This is crucial for “always-on” features like voice activation.
-
Noise Cancellation: The IC features hardware-level support for multi-microphone noise suppression and echo cancellation, significantly improving call quality in loud environments.
-
Advanced DAC/ADC: The Digital-to-Analog Converters (DAC) are optimized for low Total Harmonic Distortion (THD), ensuring that the audio output to headphones remains crisp and faithful to the source.
-
Flexible Routing: It can dynamically route audio signals to different outputs (Speaker, Earpiece, Bluetooth, or 3.5mm Jack) based on the software’s state.
Common Applications & Troubleshooting
In the mobile repair industry, the WCD9310 is one of the most frequently replaced motherboard components. Because it manages all sound-related tasks, a failure of this IC typically results in:
-
Total Audio Loss: Neither the microphone nor the speaker works.
-
Greyed-out Voice Memo: On some devices, the record button becomes unclickable.
-
Boot Loops: If the SLIMbus line is shorted within the IC, the phone may fail to boot past the logo.
Installation Note
Since this is a BGA (Ball Grid Array) chip, replacement requires professional SMD soldering tools. The chip is sensitive to heat; excessive temperature during the “reballing” or installation process can permanently damage the internal silicon gates.
