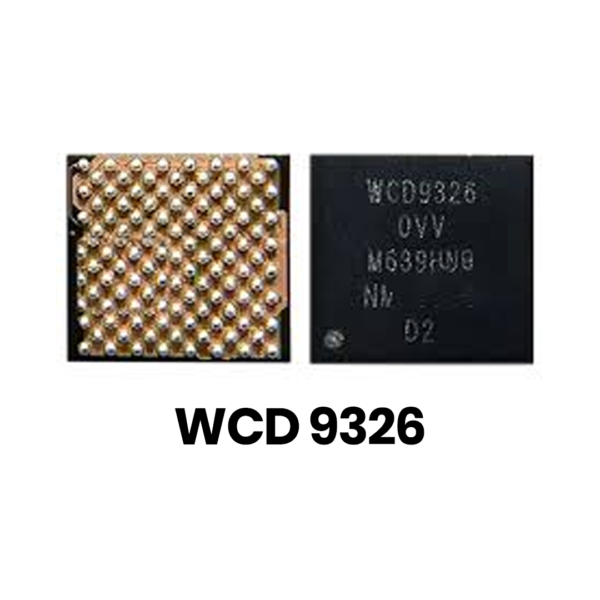

WCD 9326 Mobile Phone IC
Unmatched Performance with WCD 9326 Mobile Phone IC
The WCD 9326 Mobile Phone IC is meticulously crafted to deliver seamless connectivity and unmatched performance for modern mobile devices. This high-quality integrated circuit plays a pivotal role in ensuring reliable signal processing, enhanced audio output, and stable communication. Designed to meet the demands of the latest smartphones, the WCD 9326 is a game-changer, providing users with a smooth and satisfying mobile experience. WCD 9326 Mobile Phone IC
Advanced Features and Compact Design
One of the standout features of the WCD 9326 Mobile Phone IC is its advanced signal processing capabilities, ensuring crisp and clear communication. With its compact design, it easily integrates into a wide array of mobile phones, thereby enhancing device functionality without compromising space. The WCD 9326 also supports improved power efficiency, contributing to prolonged battery life for users who depend on their smartphones throughout the day.
Optimized for Reliable Performance
The WCD 9326 Mobile Phone IC is engineered with cutting-edge technology to optimize device performance. Its innovative architecture guarantees faster and more reliable signal transmission while maintaining superior audio quality. This IC also adheres to strict quality standards, making it a dependable choice for manufacturers seeking robust solutions to elevate their smartphone designs. Whether it’s consistent data transfer or enhanced audio clarity, the WCD 9326 delivers reliability and efficiency every time.
The WCD9326 is a high-performance audio codec IC developed by Qualcomm, primarily designed for high-end and mid-range mobile devices, including popular smartphones like the Xiaomi Redmi Note 3, Xiaomi Max, and various Samsung models. WCD 9326 Mobile Phone IC
As a dedicated audio frequency chip, it serves as the central hub for sound processing, handling tasks ranging from high-resolution digital-to-analog conversion (DAC) to noise cancellation and voice enhancement. WCD 9326 Mobile Phone IC`
WCD9326 Technical Specifications Table
| Feature | Specification Details |
| Product Type | High-Resolution Audio Codec / Power Management IC |
| Manufacturer | Qualcomm |
| Part Number | WCD-9326-0-113FOWPSP |
| Audio Resolution | Up to 24-bit / 192 kHz (High-Res Audio) |
| DAC/ADC Channels | 4-Channel Analog Input / 4-Channel Analog Output |
| Digital Interfaces | I2S (TDM mode capable), PCM, PDM, SPI, I2C |
| Supply Voltage | Dual Supply: 1.8V and 3.3V |
| Package Type | 113-pin FOWPSP (Fan-Out Wafer Level Picoscale Package) |
| Physical Dimensions | Approx. 5.5 mm x 5.5 mm x 0.6 mm |
| Operating Temperature | -40°C to +105°C |
| Integrated Features | Headphone Amp, Speaker Amp, Echo Cancellation (EC), SVA |
| Native Frequency Support | 44.1 kHz, 48 kHz, 96 kHz, 192 kHz |
Key Functional Areas
1. High-Resolution Audio Processing
The WCD9326 is engineered for fidelity. It supports native 24-bit/192kHz playback, ensuring that the audio signal remains as close to the original recording as possible. This makes it a preferred choice for smartphones marketed with “Hi-Fi” audio capabilities. It includes a dedicated DSP (Digital Signal Processor) to handle complex audio algorithms without taxing the main mobile application processor. WCD 9326 Mobile Phone IC
2. Advanced Voice Features
For telecommunications, the IC integrates Qualcomm Noise and Echo Cancellation technology. This is crucial for clear voice calls in noisy environments. It also supports Snapdragon Voice Activation (SVA), allowing the device to listen for “wake words” (like “Hey Google”) with extremely low power consumption. WCD 9326 Mobile Phone IC
3. Power Management Efficiency
Unlike standard standalone codecs, the WCD9326 is often integrated with power management functions. It features a power-efficient design that optimizes battery life during long periods of music playback. It can manage its own power sequencing and works in tandem with PMICs (Power Management ICs) like the PM8953 or PM670.
4. Hardware Connectivity
The chip is highly versatile in terms of input and output. It provides:
-
Analog Inputs: Multiple ports for primary and secondary microphones.
-
Analog Outputs: Dedicated lines for the earpiece, external speakers (via external amplifiers), and the 3.5mm headphone jack.
-
Digital I/O: Support for the SoundWire interface and traditional I2S/TDM modes for communicating with the SoC.
Common Failure Symptoms
When this IC fails in a mobile device, users typically experience:
-
No sound from the speakers or earpiece during calls.
-
The microphone failing to pick up voice (Mic IC problem).
-
The device getting stuck on the “Headphone Connected” icon even when unplugged.
-
System lag specifically when attempting to play media files.
Installation and Repair Note
Because the WCD9326 uses a FOWPSP (Fan-Out Wafer Level Picoscale Package), it has a very fine pin pitch. Replacing this chip requires professional tools, including a hot air rework station set between 300°C and 350°C, and high-quality flux to ensure the 113 pins seat correctly on the motherboard pads.
