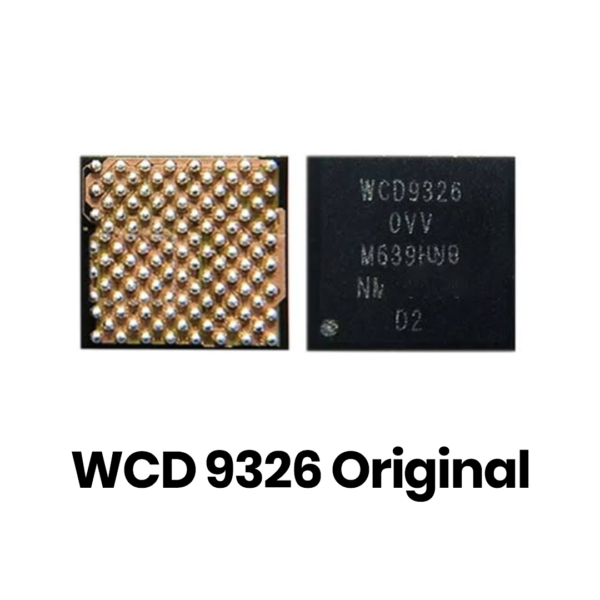

WCD 9326 Original Mobile Phone IC
Reliable and Authentic WCD 9326 Mobile IC
Experience seamless mobile performance with the WCD 9326 Original Mobile Phone IC. Designed for high efficiency and accuracy, this advanced integrated circuit plays a vital role in ensuring your mobile device operates flawlessly. Whether you are repairing your phone or upgrading its functionality, the WCD 9326 IC stands out as a superior choice for stability and reliability. WCD 9326 Original Mobile Phone IC
Superior Functionality for Optimal Mobile Performance
The WCD 9326 Original Mobile IC offers unmatched performance, enabling consistent signal processing and interaction within your device. It is manufactured with precision and quality materials to deliver exceptional durability and compatibility. This IC guarantees a smooth interface for core functionalities, including enhanced audio output, faster communication between modules, and optimized resource efficiency. WCD 9326 Original Mobile Phone IC
Why Choose the WCD 9326 Original IC?
When searching for a premium replacement mobile IC, authenticity and reliability matter most. The WCD 9326 IC meets these criteria by providing genuine quality sourced directly from trusted manufacturers. It is designed to be compatible with a wide range of mobile devices while ensuring long-lasting performance. For people requiring professional-grade solutions for repairs or upgrades, this IC offers exceptional value and uncompromising functionality. WCD 9326 Original Mobile Phone IC
The Qualcomm WCD9326 is a high-performance audio codec IC (Integrated Circuit) that belongs to the Qualcomm Aqstic™ audio technologies family. It is widely used in mid-range and high-end smartphones, including popular models from Samsung, Xiaomi (Redmi Note 3, Mi Max), and Huawei. WCD 9326 Original Mobile Phone IC
Designed to deliver studio-quality sound, the WCD9326 handles the critical conversion between digital data and analog signals, ensuring that voice calls are clear and music playback is high-fidelity. WCD 9326 Original Mobile Phone IC
WCD9326 Technical Specifications
The following table outlines the core electrical and functional specifications of the WCD9326 IC.
| Feature | Specification Details |
| Manufacturer | Qualcomm |
| Part Number | WCD-9326-0-113FOWPSP |
| Type | Audio Codec / Sound Processor |
| Resolution | 24-bit High-Resolution Audio |
| Sampling Rate | Up to 192 kHz |
| Interface Support | I2S, PCM, PDM, TDM, I2C, SPI |
| Analog Inputs | 4-Channel (Support for multi-mic arrays) |
| Analog Outputs | 4-Channel (Speaker, Headset, Line-out) |
| Supply Voltage | Dual Rail: 1.8V and 3.3V |
| Package Type | 113-pin FOWLP (Flip-Chip On Wafer Level) |
| Dimensions | Approx. 5.5 mm x 5.5 mm x 0.6 mm |
| Operating Temp | -40°C to +105°C |
| Key Technologies | Noise Cancellation, Echo Cancellation, SVA (Snapdragon Voice Activation) |
Detailed Features & Capabilities
1. High-Resolution Audio Playback
The WCD9326 is engineered for audiophiles. It supports 24-bit/192kHz playback, which is the standard used in professional recording studios. This allows the mobile device to reproduce nuances in music that are typically lost in standard 16-bit compressed audio. WCD 9326 Original Mobile Phone IC
2. Advanced Voice Processing
One of the standout features of this IC is its integration with the Qualcomm AI Engine. It supports:
-
Active Noise Cancellation (ANC): Filters out ambient noise during calls or while listening to music.
-
Echo Cancellation: Vital for hands-free speakerphone use to prevent feedback loops.
-
Voice Activation: Supports “Always-on” voice assistants (like Google Assistant) with extremely low power consumption using the SVA (Sense Audio) engine.
3. Connectivity and Integration
The chip is highly versatile, interfacing with the main Application Processor (AP) through various digital protocols. It can manage multiple microphones simultaneously, which is essential for modern “computational audio” features like focus-recording or background noise suppression. WCD 9326 Original Mobile Phone IC
4. Power Management
Mobile ICs must be efficient to preserve battery life. The WCD9326 features a low-power design that optimizes current draw based on the task—consuming significantly less power during standby or low-bitrate voice calls compared to high-fidelity music streaming.
Common Use Cases & Repair Insights
In the repair industry, the WCD9326 is a “go-to” replacement part when a device suffers from:
-
Mic Failure: No sound reaching the other party during calls.
-
Audio Distortion: Crackling or popping sounds in headphones or speakers.
-
No Sound: A complete loss of audio across all outputs, often caused by water damage or a short circuit in the IC.
Note for Technicians: Replacing this IC requires advanced BGA (Ball Grid Array) soldering skills. Because it uses a 113-pin FOWLP package, a high-precision heat station (set between 300°C – 350°C) and quality flux are necessary to avoid damaging the surrounding motherboard components.
