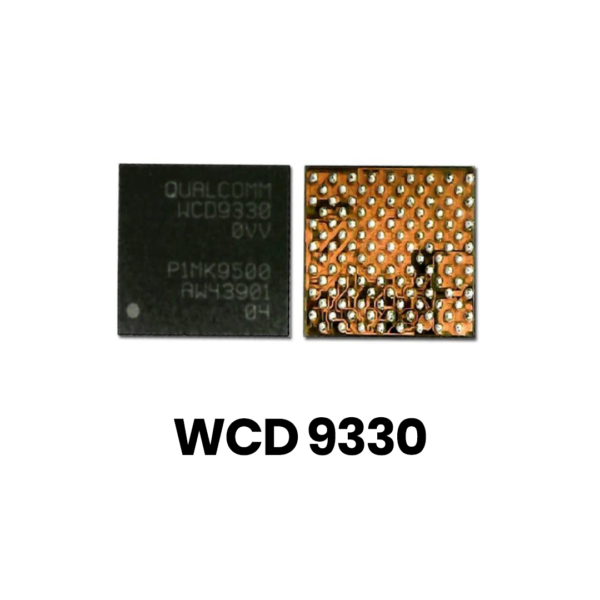

WCD 9330 Mobile Phone IC
Reliable Performance Designed for Modern Mobile Phones
Engineered to deliver exceptional reliability, the WCD 9330 Mobile Phone IC is your solution for seamless device operation. Whether you’re designing smartphones, tablets, or other connected devices, this integrated circuit is crafted to meet the high demands of modern mobile technology. With its cutting-edge functionality, it ensures flawless audio output, efficient system processing, and robust connectivity. WCD 9330 Mobile Phone IC
Advanced Audio Capabilities
The WCD 9330 stands out due to its impressive audio processing capabilities. Designed to handle high-resolution sound quality, it guarantees clear, crisp audio playback and premium voice communication performance. It’s ideal for manufacturers who aim to incorporate high-end audio experiences into their devices, offering a solid foundation for advanced sound systems. This IC is built for precision, ensuring reduced distortion and optimal sound delivery.
Energy-Efficient and Compact Design
Energy efficiency is a core feature of the WCD 9330 Mobile Phone IC. With optimized energy usage, it helps maximize battery life, making it a reliable choice for portable devices. Its compact design also ensures easy integration into smaller tech designs without compromising performance. The WCD 9330 is tailored for developers seeking functionality without sacrificing valuable space within their devices.
Incorporate the WCD 9330 Mobile Phone IC into your designs and take advantage of its innovative solutions for superior device functionality, enhanced audio experience, and streamlined energy usage. Perfect for creating cutting-edge mobile devices, this IC is a valuable asset in the growing tech landscape.
The Qualcomm WCD9330 is a high-performance audio codec IC, widely recognized for its use in flagship smartphones like the Samsung Galaxy Note 4 and Galaxy S7.1 It belongs to Qualcomm’s high-fidelity audio lineup, designed to handle complex signal processing tasks while maintaining the low power profile required for mobile devices.2
Below are the detailed technical specifications and features of the WCD9330 IC.
Technical Specifications Table
| Feature | Specification Details |
| Manufacturer | Qualcomm Technologies, Inc. |
| Component Type | Audio Codec / Audio Amplifier IC |
| Package Type | WLNSP (Wafer Level Nano Scale Package) / BGA |
| Pin Count | 119 Pins (standard configuration) |
| Sampling Rate (Playback) | Up to 192 kHz |
| Bit Depth (Resolution) | 24-bit (High-Resolution Audio support) |
| Interfaces Supported | SLIMbus, I2S, PCM, I2C (Control Interface) |
| Audio Processing | Integrated Digital Signal Processor (DSP) |
| Power Efficiency | Optimized for low-voltage, battery-operated devices |
| Supported Channels | Multi-channel (Stereo + additional paths for EAR/AUX) |
| THD + N | High-fidelity performance (typically < -100 dB) |
| Manufacturing Process | 28nm / 40nm CMOS Technology |
Key Features & Functional Description
The WCD9330 is more than a simple converter; it acts as the “audio hub” for the mobile device’s motherboard.
1. High-Resolution Audio Support3
The IC supports 24-bit/192kHz audio playback, which exceeds standard CD quality.4 This allows the device to play lossless audio formats (FLAC, ALAC) with minimal distortion, providing a “Hi-Fi” experience through the headphone jack and internal speakers. WCD 9330 Mobile Phone IC
2. Integrated Digital Signal Processing (DSP)5
One of the standout features of the WCD9330 is its integrated hardware DSP.6 This dedicated logic handles: WCD 9330 Mobile Phone IC
-
Active Noise Cancellation (ANC): Filtering out ambient noise during voice calls.7
-
Echo Suppression: Preventing feedback loops during speakerphone use.8
-
Audio Enhancement: Real-time equalization and dynamic range compression to improve small-speaker performance.
3. Advanced Connectivity (SLIMbus)
Unlike older audio chips that relied solely on I2S, the WCD9330 utilizes SLIMbus (Serial Low-power Inter-chip Media Bus).9 This interface allows the IC to communicate with the Snapdragon application processor using significantly less power while supporting multiple data streams simultaneously (e.g., listening to music while receiving a voice notification).
4. Hardware-Based Voice Activation10
The IC includes a low-power “always-on” listening block. This allows the phone to detect “wake words” (like “OK Google”) without waking up the main application processor, significantly extending battery life.
Common Applications & Use Cases
The WCD9330 is typically found in devices powered by the Snapdragon 805 and 810 series processors.11 Its primary roles include: WCD 9330 Mobile Phone IC
-
Voice Call Management: Routing audio from the microphone to the modem. WCD 9330 Mobile Phone IC
-
Media Playback: Converting digital music files into analog signals for headphones.12
-
Repair & Maintenance: Because this IC is a common point of failure for “no audio” or “microphone not working” issues in older Samsung and LG flagship phones, it is a staple component in professional mobile repair shops. WCD 9330 Mobile Phone IC
