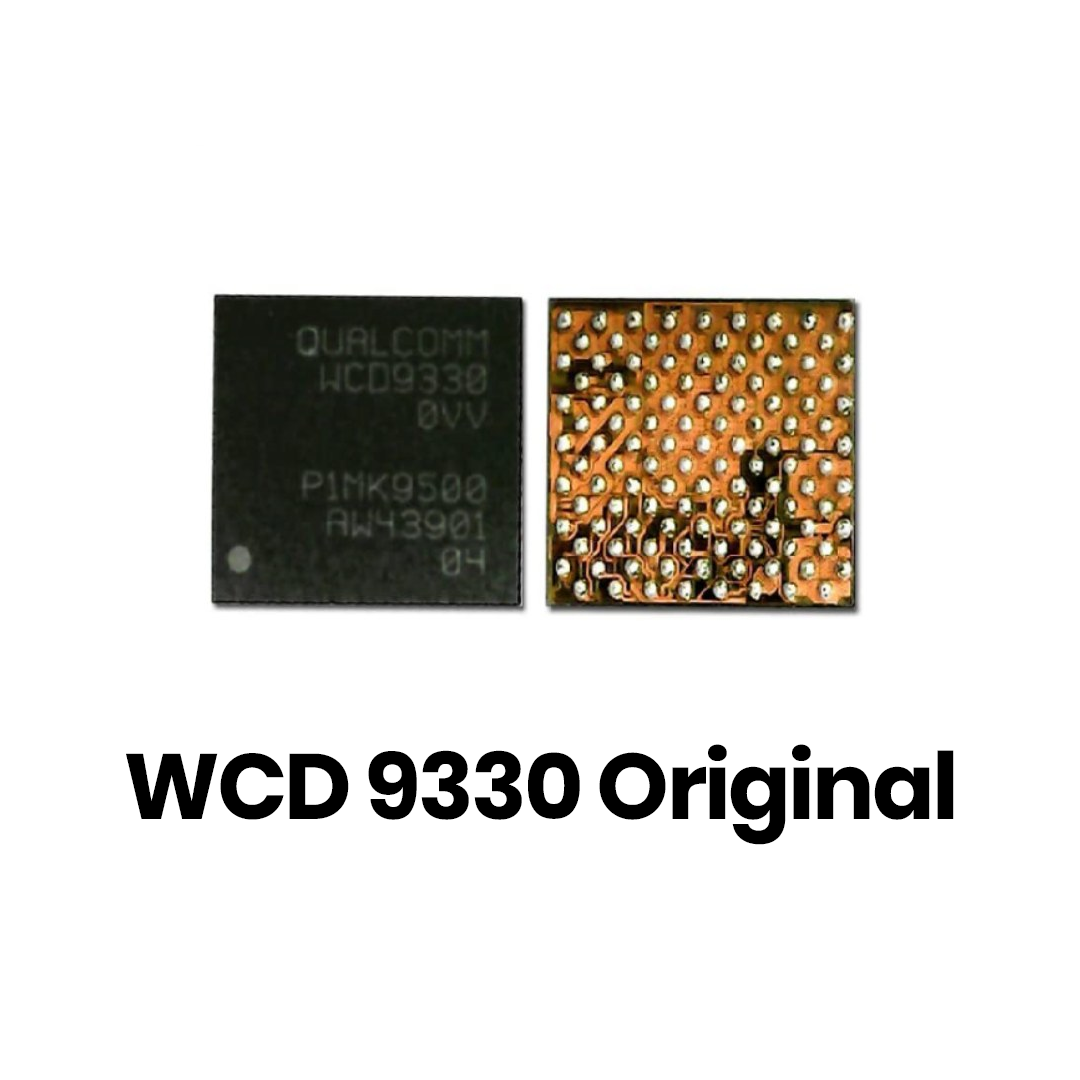

WCD 9330 Original Mobile Phone IC
Uncompromising Quality for Mobile Devices
Explore the superior performance and reliability of the WCD 9330 Original Mobile Phone IC, crafted to provide optimal functionality for your device. Designed with precision, it ensures seamless integration and compatibility with leading mobile phone models. WCD 9330 Original Mobile Phone IC
Designed for Efficiency and Durability
The WCD 9330 Mobile IC is engineered to deliver unmatched efficiency in processing audio signals. Its robust construction guarantees durability, ensuring your mobile device operates at its peak for years to come. Perfect for repairs or upgrades, it’s the trusted choice for professionals and enthusiasts alike. WCD 9330 Original Mobile Phone IC
Seamless Replacement or Upgrade Solution
Whether you’re looking to replace a faulty component or upgrade your device’s performance, the WCD 9330 Mobile Phone IC is the ideal solution. With easy installation and proven technology, it ensures hassle-free functionality without compromising on quality. WCD 9330 Original Mobile Phone IC
The WCD9330 is a highly specialized Audio Codec Integrated Circuit (IC) developed by Qualcomm. It is a cornerstone component of the audio subsystem in premium smartphones from the mid-2010s, most notably paired with the Qualcomm Snapdragon 805 and 810 processors. WCD 9330 Original Mobile Phone IC
As a “master” audio hub, the WCD9330 handles everything from the high-fidelity (Hi-Fi) digital-to-analog conversion (DAC) for your headphones to the complex noise-cancellation algorithms for the device’s multiple microphones. WCD 9330 Original Mobile Phone IC
1. Technical Specifications Overview
The WCD9330 is more than just a sound chip; it is a dedicated Digital Signal Processor (DSP) and Codec hybrid. It is designed to take the heavy lifting of audio processing off the main Application Processor (CPU) to save power.
WCD9330 Detailed Specification Table
| Feature | Specification Details |
| Manufacturer | Qualcomm |
| Model Number | WCD9330 |
| Full Part ID | WCD-9330-0-119BWLNSP |
| Package Type | BGA-119 (Ball Grid Array) |
| Pin Count | 119 Pins |
| Process Node | Optimized for low-power mobile architecture |
| Max Sampling Rate | Up to 192 kHz |
| Bit Depth | 24-bit (High Resolution) |
| Dynamic Range | ~110 dB to 120 dB (Typical for WCD series) |
| THD+N | < -90 dB (Total Harmonic Distortion + Noise) |
| Interfaces Supported | SLIMbus, I2S, PCM, PDM |
| ADC Channels | Multiple (supports up to 6+ microphones) |
| DAC Channels | Stereo High-Fidelity + Mono Headset |
| Amplifiers | Integrated Class-H Headphone Amp / Class-D Speaker Driver |
| Typical Operating Voltage | 1.8V (Core), 1.2V (Digital), 3.3V (Analog/Speaker) |
2. Key Features and Capabilities
A. High-Resolution Audio Support
The WCD9330 was one of the first codecs to push 24-bit/192kHz audio into the mainstream mobile market. This allows for “lossless” playback that captures details often lost in standard compressed audio.
B. Qualcomm Snapdragon Voice Activation
The IC includes a low-power “always-on” listening block. This allows the phone to listen for “Hey Snapdragon” or “OK Google” wake words without draining the main battery, as the WCD9330 processes the voice trigger locally.
C. Multi-Microphone Noise Cancellation (Fluence™)
Modern smartphones use 2, 3, or even 4 microphones to filter out background noise. The WCD9330 features hardware-accelerated Fluence™ technology, which:
-
Reduces wind noise during calls.
-
Enables directional recording (focusing on the person speaking).
-
Provides echo cancellation for speakerphone use.
D. Integrated Headphone Amplifier
It features an integrated Class-H headphone amplifier. Unlike standard amplifiers, Class-H dynamically adjusts its power supply voltage based on the audio signal’s volume, significantly reducing power waste when listening at lower volumes.
3. Physical Architecture and Pinout (BGA-119)
The WCD9330 uses a WLCSP (Wafer Level Chip Scale Package) with 119 solder balls. This extremely compact design is necessary because the IC must sit on a densely packed smartphone motherboard.
Typical Pin Groupings
-
Power Rails (Vdd): Multiple pins dedicated to different voltages (Digital, Analog, Speaker, and PLL).
-
Audio Inputs (MIC): Differential inputs for the primary, secondary, and headset microphones.
-
Audio Outputs (HPH): Left and Right High-Performance Headphone outputs.
-
Control Bus (SLIMbus): The primary data highway used to talk to the Snapdragon processor.
4. Common Applications and Device Compatibility
The WCD9330 is most famous for its role in flagship devices from 2014 and 2015. If a phone used the Snapdragon 805 or 810, it almost certainly used this IC.
-
Samsung Galaxy Note 4 (N910 Series): The WCD9330 is the heart of the Note 4’s audio system.
-
Samsung Galaxy S6 / S6 Edge: Used in specific regional variants.
-
Google Nexus 6: Responsible for the front-facing stereo speaker processing.
-
LG G4 / V10: Provided the foundation for LG’s high-fidelity audio reputation.
5. Troubleshooting and Repair (Motherboard Level)
Because this IC handles all sound-related tasks, its failure is usually catastrophic for the phone’s usability.
Signs of a Failing WCD9330:
-
No Sound: The phone produces no sound from speakers OR headphones.
-
Microphone Failure: Others cannot hear you during calls, but the hardware microphones test fine.
-
Boot Loops: A short circuit within the WCD9330 power rail can prevent the Snapdragon CPU from booting.
-
“Audio IC” Grayed Out: In some software menus, audio settings cannot be toggled.
Repair Difficulty
Replacing a WCD9330 requires Level 3 Master Technician skills. Since it is a BGA (Ball Grid Array) chip, it must be “reballed” or replaced using a hot-air rework station and high-quality flux. The surrounding components are often under-filled with epoxy, making removal risky without proper training.
6. Comparison with Successors
| Feature | WCD9330 (Older) | WCD9335 (Succeeding) | WCD9341 (Modern) |
| Paired SoC | Snapdragon 810 | Snapdragon 820 | Snapdragon 835/845 |
| Max DAC Bits | 24-bit | 24-bit | 32-bit |
| Noise Floor | -115 dB | -118 dB | -122 dB |
| DSD Support | Limited | Native | Full DSD64/128 |
Summary
The WCD9330 remains a legendary audio IC in the mobile world. It bridged the gap between “standard phone audio” and the “Hi-Fi mobile” era. Its integration of low-power voice activation and advanced noise cancellation set the standard for how modern smartphones handle sound today.
