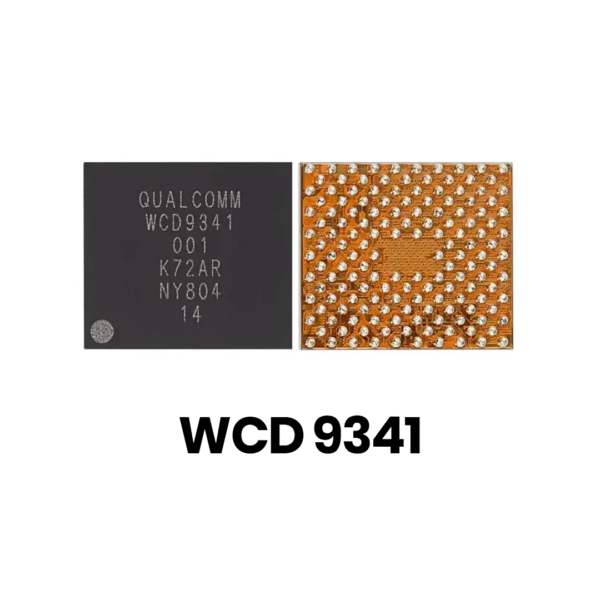

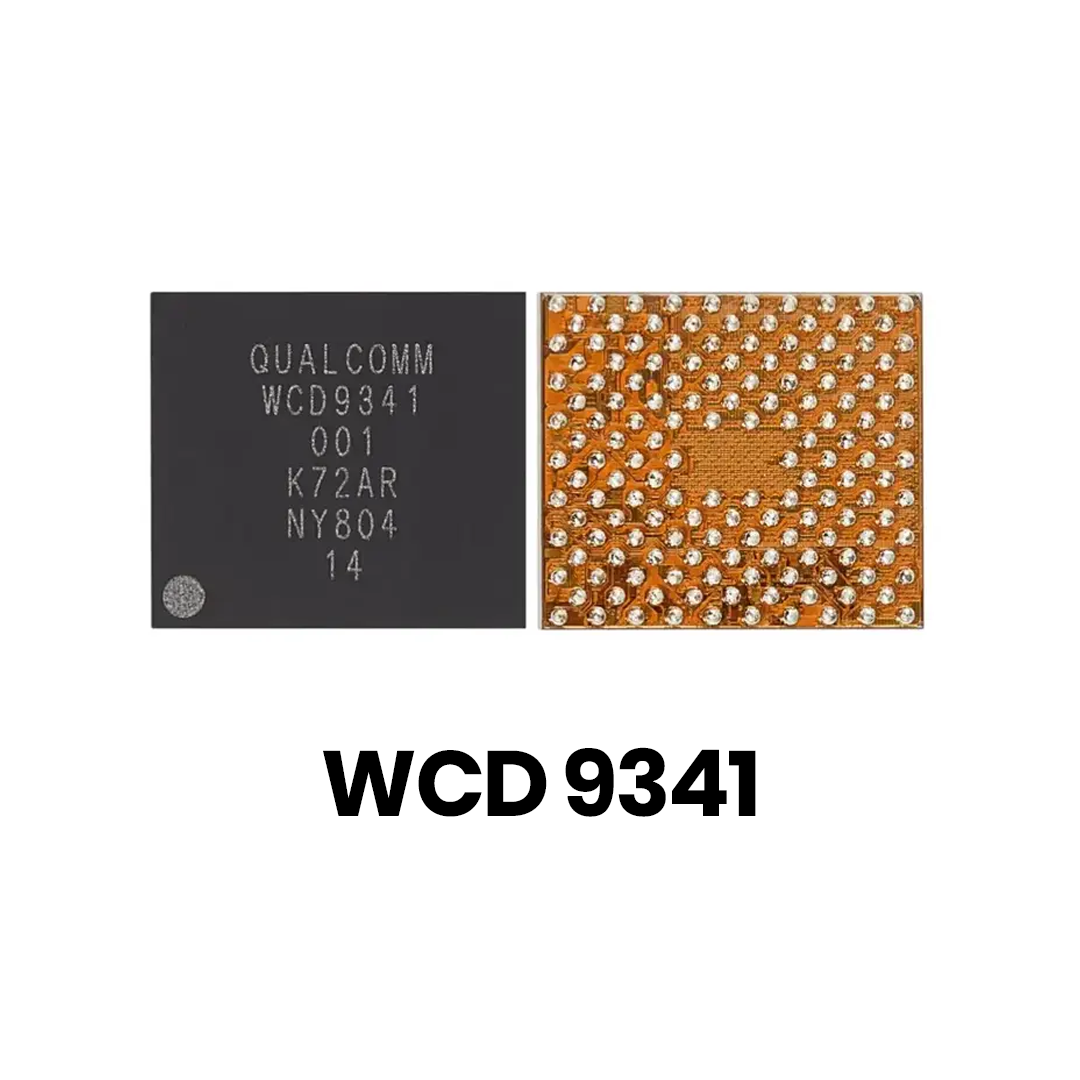

WCD 9341 Mobile Phone IC
Unlock Superior Connectivity with the WCD 9341 Mobile Phone IC
The WCD 9341 Mobile Phone IC is designed to offer unparalleled performance, ensuring a seamless mobile experience for modern devices. Engineered with advanced technology, this high-quality Integrated Circuit (IC) becomes the backbone of mobile communication systems, offering exceptional connectivity capabilities and robust signal processing for improved efficiency.
Exceptional Features and Performance
The WCD 9341 IC stands out for its cutting-edge features and design. With precise functions aimed at enhancing wireless communication, it excels in improving audio quality, optimizing signal range, and providing seamless integration for smartphones and other devices. Its compact design eliminates complexities and ensures smooth operation, making it a reliable choice for manufacturers and developers looking for next-generation solutions.
Why Choose the WCD 9341 Mobile Phone IC?
Choosing the WCD 9341 IC guarantees a product that balances innovation and practicality, ideal for enhancing mobile device functionality. Test-proven for reliability and durability, it supports various applications, ensuring compatibility with industry standards. Whether used in smartphones, wearables, or tablets, the WCD 9341 IC offers a dependable solution for superior mobile communication, contributing significantly to the evolving smart technology landscape.
The WCD9341 is a high-performance audio codec IC part of the Qualcomm Aqstic™ audio platform. It is a flagship-grade component found in premium smartphones (like the Samsung Galaxy S8/Note 8 and devices powered by the Snapdragon 835/845/855). It is designed to bridge the gap between mobile convenience and audiophile-grade “Hi-Fi” sound.
Below are the detailed technical specifications and features for the WCD9341 IC.
Core Specifications
| Feature | Specification |
| Model | WCD9341 |
| Series | Qualcomm Aqstic™ Audio Codec |
| Package Type | 154-pin WLPSP (Wafer Level Chip Scale Package) |
| Function | Integrated Audio Codec, DAC, ADC, and Audio DSP |
| Playback Resolution | Up to 32-bit / 384 kHz (PCM) |
| Recording Resolution | Up to 24-bit / 192 kHz |
| SNR (Signal-to-Noise Ratio) | ~130 dB (Dynamic Range for Playback) |
| THD+N (Total Harmonic Distortion) | Less than -109 dB |
| Power Consumption | ~6 mW (Low-power playback) to 34 mW (High-perf) |
| Voltage Range | 1.8V to 3.3V |
Key Technical Features
The WCD9341 is not just a simple sound chip; it is a sophisticated processor that handles complex audio tasks:
-
Hi-Fi Audio Support: It natively supports DSD (Direct-Stream Digital) playback (DSD64/128) and DXD, which are formats typically reserved for high-end dedicated audio players.
-
Always-On Voice UI: The IC includes an integrated low-power DSP specifically for “Wake-on-Voice.” It can listen for multiple “trigger words” (like “Hey Google” or “Alexa”) simultaneously with a standby current as low as 0.65 mA.
-
Active Noise Cancellation (ANC): It features dedicated hardware blocks for echo cancellation and noise suppression, significantly improving call quality in windy or crowded environments.
-
Multi-Channel Support: It can manage up to 8 differential audio channels, allowing for complex stereo setups and immersive surround sound virtualization in mobile devices. WCD 9341 Mobile Phone IC
Common Faults & Symptoms
In the repair industry, this IC is frequently replaced when a device experiences “Audio IC Disease.” Symptoms that indicate a failing WCD9341 include:
-
Greyed out Voice Memos: The record button cannot be pressed. WCD 9341 Mobile Phone IC
-
No Sound / Mic: No audio from the earpiece, loudspeaker, or microphone during calls. WCD 9341 Mobile Phone IC
-
Boot Loops: If the audio bus is shorted, the phone may take several minutes to turn on or get stuck on the logo. WCD 9341 Mobile Phone IC
-
Distorted Audio: Static or robotic sounds during media playback.
-
Comparison: WCD9341 vs. Standard Codecs
Standard mid-range audio ICs usually peak at 16-bit/44.1kHz (CD quality). The WCD9341 provides 4x the bit depth and nearly 9x the sampling frequency, effectively reducing the “noise floor” to near-silent levels even when using high-impedance professional headphones.
