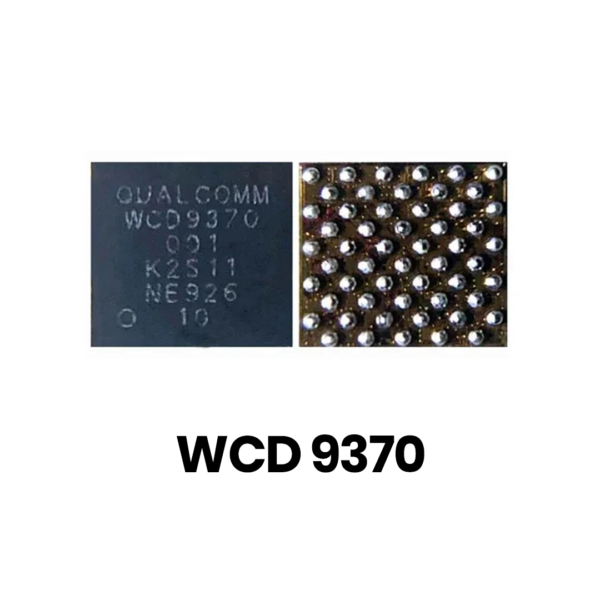

WCD 9370 Mobile Phone IC
Exceptional Performance for Mobile Devices
The WCD 9370 Mobile Phone IC is meticulously crafted to deliver superior performance and reliability for modern mobile phones. This high-quality integrated circuit (IC) plays a crucial role in ensuring optimal device functionality, making it an essential component for smartphone manufacturers and repair professionals. With advanced engineering and cutting-edge technology embedded within, you can trust the WCD 9370 to efficiently handle all its intended processes, including signal control and system management.
Precision and Compatibility
Designed with precision and care, the WCD 9370 Mobile Phone IC is compatible with a wide range of mobile phone models, ensuring flexibility and ease of use. Whether you are upgrading an existing device, repairing critical hardware, or creating innovative mobile solutions, this IC is built to integrate seamlessly into mobile systems. Its dependable design enhances device longevity and supports stable operations, even in high-demand environments.
Why Choose WCD 9370?
With the WCD 9370 Mobile Phone IC, you benefit from unparalleled efficiency and reliability. It is manufactured using high-grade materials and innovative production techniques, ensuring durability over long-term use. Moreover, its low power consumption feature means your devices maintain excellent battery performance while maximizing overall functionality. For developers, repair technicians, and manufacturers seeking high-performance mobile ICs, the WCD 9370 is an investment that guarantees value.
The WCD 9370 Mobile Phone IC is your solution for robust device performance, streamlined integration, and dependable results. Experience the difference with a streamlined product designed for excellence in mobile technology.
The Qualcomm Aqstic WCD9370 is a high-performance, discrete audio codec IC designed for mid-to-high-end smartphones. It acts as the primary “audio hub,” bridging the gap between the digital processor (Snapdragon SoC) and the phone’s physical audio components like speakers, microphones, and headphones. WCD 9370 Mobile Phone IC
WCD9370 Full Specifications
The following table summarizes the key technical parameters and architectural features of the WCD9370:
| Feature | Specification Details |
| Model Number | WCD9370 (Qualcomm Aqstic Series) |
| Architecture | 40 nm Low Power Process |
| Package Type | 55-pin Wafer-Level Picoscale Package (WLPSP) |
| Package Size | 2.83 mm × 2.58 mm × 0.55 mm |
| Sampling Rates (Playback) | 8, 16, 32, 44.1, 48, 88.2, 96, 176.4, and 192 kHz |
| PCM Resolution | Up to 24-bit / 192 kHz |
| Dynamic Range (Playback) | Up to 120 dB |
| THD + N (Playback) | < -96 dB (Ultra-low distortion) |
| Dynamic Range (Record) | Up to 104 dB |
| THD + N (Record) | < -97 dB |
| Audio Interfaces | SoundWire (Digital), 3x Analog Tx, 4x Analog Rx |
| Converters | 2x Audio ADCs, 4x Digital-to-Analog Converters (DACs) |
| Power Consumption | ~6 mW (Low Power Mode) / ~16.1 mW (Hi-Fi Playback) |
| Operating Voltage | Typically 1.8V to 3.3V |
Key Functional Components
-
High-Fidelity DACs: The IC features four dedicated DACs that provide high-resolution audio. It supports native Direct-Stream Digital (DSD) playback, allowing for “audiophile-grade” sound reproduction without the noise typically introduced by software conversion.
-
SoundWire Interface: This is the primary digital communication protocol used to connect the IC to the main Snapdragon processor. It ensures low-latency and high-bandwidth data transfer for multi-channel audio.
-
MBHC (Multibutton Headset Control): The WCD9370 includes smart accessory detection. It can identify when a headset is plugged in, detect button presses (volume/play/pause), and distinguish between tip and ground insertion to prevent short circuits.
-
Integrated Power Management: To reduce the Bill of Materials (BOM) for phone manufacturers, the IC includes its own Low Dropout (LDO) regulator and a Single-Inductor Multiple-Output (SIMO) flyback circuit for efficient power delivery. WCD 9370 Mobile Phone IC
Common Applications and Repair Context
The WCD9370 is widely used in Snapdragon-powered devices, most notably in the Xiaomi Redmi Note 7/8 Pro, Samsung Galaxy A70, and OnePlus 9.
In the mobile repair industry, this IC is a frequent target for “Audio IC” issues. Symptoms of a failing WCD9370 include:
-
Total loss of sound from both speakers and headphones.
-
Microphone failing only during voice calls (but working in apps).
-
The device “hanging” or freezing when attempting to play a video or record a voice note.
Note for Technicians: Replacing this chip requires BGA reballing skills. Due to its 40nm architecture and 55-pin picoscale package, it is highly sensitive to heat; a precision stencil and a professional hot-air station (typically set around 230°C–250°C) are required for successful installation.
