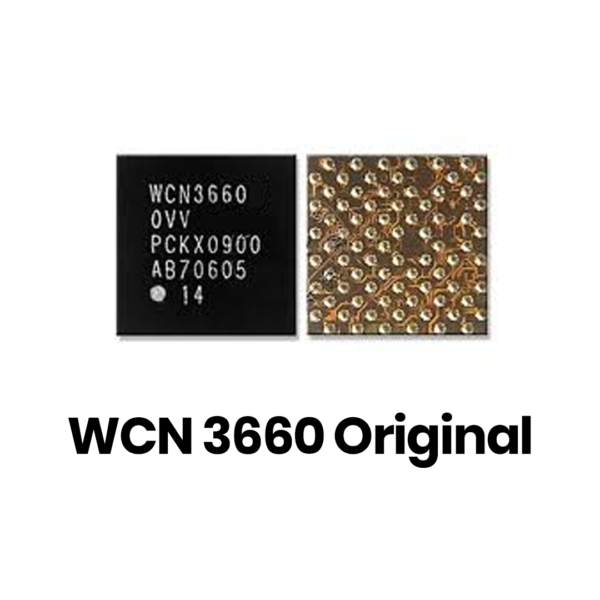

WCN 3660 Original Mobile Phone IC
Reliable Quality for Optimal Performance
The WCN 3660 Original Mobile Phone IC is engineered to meet the highest standards of reliability and performance, ensuring smooth functionality for modern mobile devices. Designed with precision, this integrated circuit (IC) supports robust connectivity and efficient operation, making it an essential component for mobile applications. Whether you’re upgrading a smartphone or repairing an older model, the WCN 3660 IC delivers the necessary performance boost for seamless user experiences.
Advanced Technology for Enhanced Connectivity
Built with cutting-edge technology, the WCN 3660 IC is optimized for superior connectivity, allowing devices to achieve faster speeds and uninterrupted performance. It plays a vital role in improving wireless communication capabilities, providing compatibility with advanced mobile technologies. As a trusted and original product, this IC is specifically designed to meet the technical demands of both manufacturers and technicians who require reliability in mobile hardware components.
Effortless Integration and Versatility
The WCN 3660 Original Mobile Phone IC offers effortless integration into various mobile device architectures, ensuring compatibility with a vast range of hardware configurations. Its compact design is an ideal fit for modern smartphone layouts, simplifying the repair process without compromising on quality. Whether used in device manufacturing or repair work, this IC ensures consistent results. Furthermore, its durability and efficiency make it the preferred choice for professionals in the field. WCN 3660 Original Mobile Phone IC
Invest in the WCN 3660 Original Mobile Phone IC to improve mobile systems’ reliability and enhance user satisfaction. With this advanced technology component, you can rest assured knowing that you’re working with an original and trusted product designed to perform exceptionally under diverse conditions. WCN 3660 Original Mobile Phone IC
The WCN3660 (often referred to as the WCN3660A or WCN3660B) is a highly integrated wireless connectivity IC developed by Qualcomm Atheros. It was specifically designed to provide a “combo” solution for smartphones and tablets, integrating Wi-Fi, Bluetooth, and FM radio into a single chip. WCN 3660 Original Mobile Phone IC
This IC is famously paired with the Snapdragon processor family (such as the Snapdragon 600 series) and is prized for its low power consumption and small PCB footprint.
WCN3660 Technical Specifications
| Feature | Specification Details |
| Manufacturer | Qualcomm Technologies, Inc. |
| Connectivity Standards | Wi-Fi (WLAN), Bluetooth (WPAN), FM Radio |
| Wi-Fi Protocols | IEEE 802.11a/b/g/n (Dual-band 2.4 GHz & 5 GHz) |
| Wi-Fi Throughput | Single-stream (1×1), up to 150 Mbps (HT40) |
| Bluetooth Version | Bluetooth 4.0 (includes Classic and Low Energy / BLE) |
| FM Radio Features | Worldwide band (76–108 MHz), FM Rx/Tx, RDS/RBDS support |
| Fabrication Process | 65nm RF CMOS Technology |
| Package Type | WLNSP (Wafer Level Nano Scale Package) / BGA |
| Package Dimensions | Approx. 10mm x 10mm (varies by specific variant) |
| Pin Configuration | 79-pin / 867-pin (depending on BGA/WLNSP layout) |
| Host Interface | SDIO (WLAN), UART/PCM/I2S (Bluetooth/Audio) |
| Coexistence | Integrated Qualcomm “Coexistence Manager” for LTE/Wi-Fi/BT |
| Supply Voltage | Multi-rail (typically 1.8V, 1.3V, and 3.3V RF rails) |
Key Functional Highlights
-
Dual-Band Versatility: Unlike many entry-level chips, the WCN3660 supports both the crowded 2.4 GHz and the cleaner 5 GHz Wi-Fi bands. This is critical for avoiding interference in urban environments.
-
Integrated RF Front-End: The chip includes a built-in dual-band power amplifier (PA), low-noise amplifier (LNA), and transmit/receive switches. This reduces the need for external components, saving up to 50% of board space compared to discrete designs.
-
Intelligent Coexistence: It features a hardware-level coexistence engine. This prevents the Bluetooth signal from “drowning out” the Wi-Fi or LTE signals, ensuring that you can listen to music on Bluetooth headphones while downloading data over Wi-Fi without drops.
-
Advanced FM Radio: It doesn’t just receive FM; it can also act as an FM transmitter (FM Tx), allowing the device to broadcast audio to car stereos or older radios.
-
Low Power Architecture: Designed for mobile use, it features “Deep Sleep” and “Standby” modes that consume minimal current, significantly extending the standby battery life of the host smartphone.
Common Applications
The WCN3660 was widely used in iconic mobile devices from manufacturers like Xiaomi (notably the Mi 4), Sony, and LG. It is often a go-to replacement part for repair technicians dealing with “No Wi-Fi” or “Bluetooth greyed out” issues on older Snapdragon-based handsets.
