WCN 3660B Mobile Phone IC

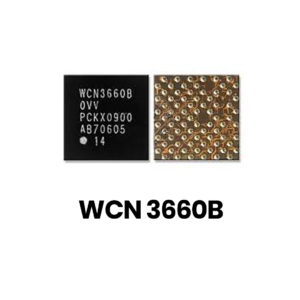

Overview of WCN 3660B Mobile Phone IC
The WCN 3660B Mobile Phone IC establishes itself as an essential component in modern mobile communication technology, ensuring seamless connectivity and smooth performance for a wide array of devices. Built with precision engineering and robust compatibility, this integrated circuit simplifies mobile communication processes and maximizes efficiency, making it a go-to choice for manufacturers and engineers around the globe. WCN 3660B Mobile Phone IC
Key Features and Functionality
Designed to cater to the evolving needs of mobile technologies, the WCN 3660B IC focuses on delivering superior wireless performance and reliability. It offers optimized connectivity solutions, making it suitable for smartphones, tablets, and other mobile devices. The compact form factor supports better integration in minimal space while maintaining unmatched functionality. Its improved power efficiency enables longer device battery life, allowing uninterrupted use for extended periods.
Additional technical advantages include enhanced signal processing capabilities, reduced susceptibility to interference, and compatibility with current global mobile standards. Engineers can leverage its advanced architecture for better communication speeds and reliable data transmission across networks.
Applications in Modern Technology
The WCN 3660B Mobile Phone IC plays a critical role in devices needing robust wireless communication modules. From enabling faster internet browsing, optimizing multimedia features, to enhancing overall device performance, this IC has emerged as an integral component for manufacturers seeking superior electronic solutions. It also supports applications like IoT devices, smart home technology, and industrial mobile systems, where efficient data transmission and reliability are paramount. WCN 3660B Mobile Phone IC
Elevating mobile communication capabilities, the WCN 3660B IC bridges the gap between advanced technologies and user expectations. Its proven performance combined with versatile applications demonstrates its importance in modern device design. Whether you’re developing smartphones or innovative communication-driven gadgets, this product delivers excellence across the board. WCN 3660B Mobile Phone IC
The Qualcomm WCN3660B is a highly integrated “combo” connectivity Integrated Circuit (IC) designed to provide Wi-Fi, Bluetooth, and FM radio capabilities for mobile devices. It was engineered specifically to interface with Qualcomm’s Snapdragon processor family (such as the 28nm MSM8960 and APQ8064) and later integrated into wearable platforms like the Snapdragon Wear 4100+. WCN 3660B Mobile Phone IC
The chip is known for its compact design, significantly reducing the board area required for connectivity by up to 50% compared to discrete solutions. WCN 3660B Mobile Phone IC
WCN3660B Technical Specifications
| Feature | Specification Details |
| Manufacturer | Qualcomm Atheros |
| Part Number | WCN3660B (typically marked as WCN3660B-0VV) |
| Process Technology | 65nm RF CMOS / Interfaced with 28nm & 12nm SoCs |
| Package Type | MINI BGA (Ball Grid Array) |
| Pin Count | 867-pin (Mini BGA 867) |
| Package Size | Wafer-level package (approx. 15mm² footprint) |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n (Dual-band 2.4 GHz & 5 GHz) |
| Wi-Fi Throughput | Single-stream (1×1) 802.11n |
| Bluetooth Version | Bluetooth 4.0 / 4.1 / 4.2 (supports BR/EDR + BLE) |
| FM Radio | Worldwide band (76–108 MHz) Rx/Tx with RDS/RBDS support |
| Operating Temp | 0°C to 100°C |
| Power Consumption | Ultra-low power active and standby modes |
| Main Applications | Smartphones, Tablets, Wearables (Smartwatches), IoT |
Key Functional Attributes
1. Integrated Connectivity Architecture
The WCN3660B functions as a front-end companion to the main application processor. It contains an integrated dual-band power amplifier (PA), a transmit antenna switch, and on-chip matching circuits. This level of integration ensures that the mobile device maintains a slim profile while supporting high-speed data transmission.
2. Coexistence Management
To prevent interference between Wi-Fi, Bluetooth, and LTE signals (which often operate in adjacent frequency bands), the WCN3660B utilizes a centralized coexistence manager. This allows for real-time packet arbitration, ensuring that a Bluetooth audio stream doesn’t drop when a Wi-Fi download starts or when the phone switches to an LTE data band.
3. Advanced Multimedia Support
-
Wi-Fi Display: Supports streaming high-definition video directly to external screens.
-
Audio Enhancement: Features active noise cancellation for FM radio and high-fidelity Bluetooth audio profiles.
-
Location Services: Often works in tandem with the Snapdragon’s “izats” location engine to assist in indoor positioning via Wi-Fi signal triangulation.
Common Use Cases & Repair
In the mobile repair industry, the WCN3660B is frequently replaced in devices like the Samsung Galaxy A5 (A500) and various Xiaomi Redmi models when users encounter “Wi-Fi not turning on” or “Bluetooth greyed out” issues. Because it is a BGA chip, replacement requires professional SMD reworking tools and precision soldering at temperatures between 300°C and 350°C.
