WTR 2605 Mobile Phone IC
Optimize Your Device Performance

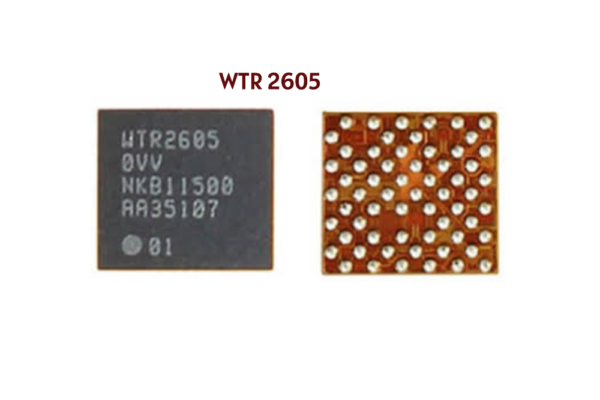

The WTR 2605 Mobile Phone IC is a cutting-edge integrated circuit designed to seamlessly enhance your device’s performance. Engineered for efficiency, this IC ensures smooth communication, robust signal processing, and minimal power consumption. WTR 2605 Mobile Phone IC
Compact Design for Versatile Applications
With its compact and lightweight design, the WTR 2605 fits perfectly into a variety of mobile phone configurations, supporting both modern and legacy systems. Whether you’re building a new device or upgrading existing technology, this IC is your go-to solution for versatility and reliability. WTR 2605 Mobile Phone IC
Reliable and Ready for Innovation
Built to meet the demands of ever-evolving mobile technology, the WTR 2605 focuses on high-quality performance, durability, and adaptability. Trust this IC to power your devices with precision and stability, maximizing user experience and satisfaction. WTR 2605 Mobile Phone IC
The Qualcomm WTR2605 is a highly integrated Radio Frequency (RF) transceiver chip primarily used in mid-range 4G LTE and 3G smartphones. Acting as the “intermediary” between the device’s antenna and the digital baseband processor, it manages the critical tasks of signal reception, frequency conversion, and transmission. WTR 2605 Mobile Phone IC
Technical Specification Table
| Parameter | Specification Details |
| Manufacturer | Qualcomm Technologies, Inc. |
| Product Type | RF Transceiver / Intermediate Frequency (IF) IC |
| Supported Networks | LTE (FDD & TDD), WCDMA (HSPA+), CDMA, GSM/EDGE |
| LTE Category Support | Category 4 (Up to 150 Mbps Downlink / 50 Mbps Uplink) |
| Frequency Range | Multi-band support (B1–B5, B7, B8, B20, B38, B40, etc.) |
| Architecture | Direct-conversion (Zero-IF) |
| Receive (RX) Chains | 1 Primary Receive Chain |
| Transmit (TX) Chains | 1 Primary Transmit Chain |
| Output Power (Max) | +23 dBm (LTE/WCDMA), +33 dBm (GSM) |
| Package Type | 48-pin Flip-Chip BGA (Wafer Level Nano-Scale Package) |
| Package Dimensions | 5 mm x 5 mm |
| Process Technology | CMOS (Complementary Metal-Oxide-Semiconductor) |
Core Functional Description
1. Signal Transmission (TX)
The WTR2605 receives digital I/Q (In-phase and Quadrature) data from the baseband processor (such as an MSM series SoC). It converts these digital signals into analog waveforms, up-converts them to the target radio frequency (e.g., 1800 MHz or 2100 MHz), and prepares them for the Power Amplifier (PA). Because it uses a direct-conversion architecture, it eliminates the need for bulky Intermediate Frequency (IF) filters, significantly saving space on the mobile motherboard.
2. Signal Reception (RX)
In the receive path, the IC takes weak incoming signals from the antenna and Low Noise Amplifiers (LNA). It performs down-conversion to baseband, filters out noise and adjacent channel interference, and provides the signal to the processor for decoding. The WTR2605 is designed with integrated RX filters to minimize the bill of materials (BOM) for phone manufacturers.
3. Integration & Power Management
A standout feature of the WTR series is the integration of the RF synthesizer and voltage regulators within the chip. By managing its own power states, it can rapidly switch between active and sleep modes, which is essential for preserving battery life in mobile devices. It also supports Envelope Tracking (ET) when paired with compatible power management ICs, which optimizes the efficiency of the power amplifiers.
Key Applications and Use Cases
-
Smartphones: Found in classic mid-tier devices (e.g., Moto G series, various Xiaomi and Samsung mid-range models).
-
Data Cards & Tablets: Used in cellular-enabled tablets and 4G USB dongles.
-
Repair Context: In the mobile repair industry, the WTR2605 is often replaced when a phone shows “No Service,” “Searching,” or “Radio Off” errors despite having a valid SIM card.
Comparison: WTR2605 vs. WTR2965
While the WTR2605 provides robust 4G connectivity, its successor, the WTR2965, introduced support for Carrier Aggregation (CA). The WTR2605 is generally limited to single-carrier operations, making it more suitable for budget-conscious or entry-level 4G hardware where high-speed multi-band combining is not a priority.
