WTR 2955 ORIGNAL Mobile Phone IC
Overview

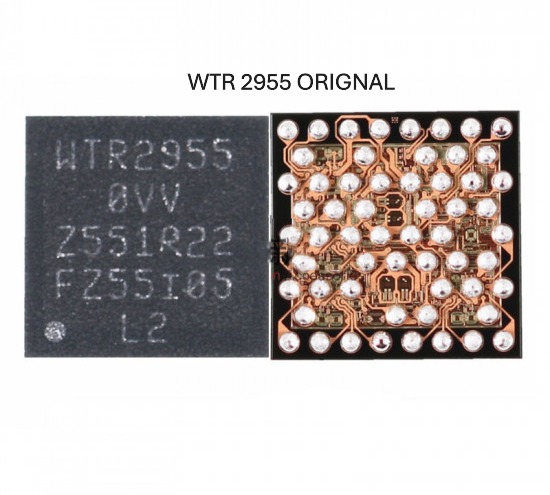

The WTR 2955 ORIGNAL Mobile Phone IC is an essential component designed for seamless and efficient operation in mobile devices. Built with precision and reliability, this Integrated Circuit ensures your mobile performs at its best, meeting the demands of modern connectivity. WTR 2955 ORIGNAL Mobile Phone IC
Features
Crafted with high-quality materials, the WTR 2955 Original IC offers exceptional durability and stability. Its design minimizes energy consumption while maximizing functionality, making it a practical and long-lasting solution for mobile repair professionals and tech enthusiasts alike. WTR 2955 ORIGNAL Mobile Phone IC
Why Choose the WTR 2955?
Ideal for both replacing damaged ICs and upgrading systems, this product guarantees performance consistency in mobile applications. Its compact and robust design is engineered to deliver reliable results, ensuring a hassle-free experience for users and repair experts. WTR 2955 ORIGNAL Mobile Phone IC
The WTR2955 is a critical radio frequency (RF) transceiver integrated circuit (IC) manufactured by Qualcomm. It serves as a middleman between a smartphone’s antenna and the baseband processor, handling the heavy lifting of signal modulation and demodulation. WTR 2955 ORIGNAL Mobile Phone IC
Commonly referred to in the repair industry as an “Intermediate Frequency (IF) IC” or “Network IC,” it is most notably found in mid-range devices from manufacturers like Xiaomi (Redmi) and Samsung. WTR 2955 ORIGNAL Mobile Phone IC
Technical Specifications Table
| Feature | Specification |
| Manufacturer | Qualcomm Technologies, Inc. |
| Part Number | WTR-2955-0-59FOWNSP |
| IC Category | RF Transceiver / Intermediate Frequency (IF) IC |
| Package Type | BGA (Ball Grid Array) / WLNSP |
| Package Size | Approx. 7mm x 7mm (standard RF module size) |
| Frequency Bands | LTE (FDD/TDD), WCDMA, GSM, TD-SCDMA |
| GNSS Support | GPS, GLONASS, Beidou, Galileo |
| Connectivity | Supports Carrier Aggregation (CA) |
| Main Functions | Signal Amplification, Filtering, Frequency Conversion |
| Operating Voltages | 1.8V / 1.3V (Typical internal rails) |
Detailed Functional Description
1. RF Transceiver Architecture
The WTR2955 is designed to facilitate high-speed wireless communication. As a transceiver, it combines both a transmitter and a receiver on a single silicon die. In the receiving path, it takes high-frequency signals from the air, filters out noise, and converts them down to a frequency that the processor can understand. Conversely, when sending a text or making a call, it converts digital data into high-frequency waves for transmission.
2. Multi-Band & Multi-Mode Support
One of the core strengths of the WTR2955 is its versatility. It is a multi-mode chip, meaning it can switch seamlessly between different generations of network technology. Whether the phone is on a 2G (GSM), 3G (WCDMA), or 4G (LTE) network, the WTR2955 manages the transition without dropping the connection. Its support for Carrier Aggregation allows it to combine multiple frequency bands to increase data throughput, which is essential for modern high-speed internet usage. WTR 2955 ORIGNAL Mobile Phone IC
3. Integrated GNSS (Navigation)
Unlike older RF chips that required a separate IC for GPS, the WTR2955 features an integrated GNSS (Global Navigation Satellite System) receiver. It supports multiple constellations including GPS (USA), GLONASS (Russia), and Beidou (China). This integration saves space on the motherboard and reduces power consumption, allowing for “Always-on” location services with minimal battery drain. WTR 2955 ORIGNAL Mobile Phone IC
4. Power Management and Efficiency
The IC includes a built-in Power Management Unit (PMU). This sub-system ensures that the chip only draws the power it needs for the specific task at hand. For instance, during “Sleep Mode” when the phone is idle, the WTR2955 consumes negligible power while remaining ready to “wake up” the instant a signal is detected. WTR 2955 ORIGNAL Mobile Phone IC
Common Applications and Use Cases
The WTR2955 is widely used in devices where a balance between cost and high-end performance is required. Some of the most common devices utilizing this IC include:
-
Xiaomi: Redmi Note 3, Mi Max.
-
Samsung: Galaxy A9000, and various J-series models.
-
Network Hardware: Some 4G LTE routers and IoT (Internet of Things) gateways.
Signs of a Failing WTR2955
In the mobile repair world, the WTR2955 is often replaced when a phone exhibits specific “Network” or “Signal” issues. Common symptoms include:
-
“No Service” or “Searching” errors despite a valid SIM card.
-
Weak Signal: The phone only catches signal when very close to a cell tower.
-
Radio Off: The phone’s software shows the radio as “Off” in the testing menu, often caused by a hardware short inside this IC.
-
GPS Issues: Failure to lock onto satellites or extremely inaccurate positioning.
Note: Replacing this chip requires professional “reballing” skills and a BGA rework station, as the chip is soldered using microscopic solder balls underneath its surface.
