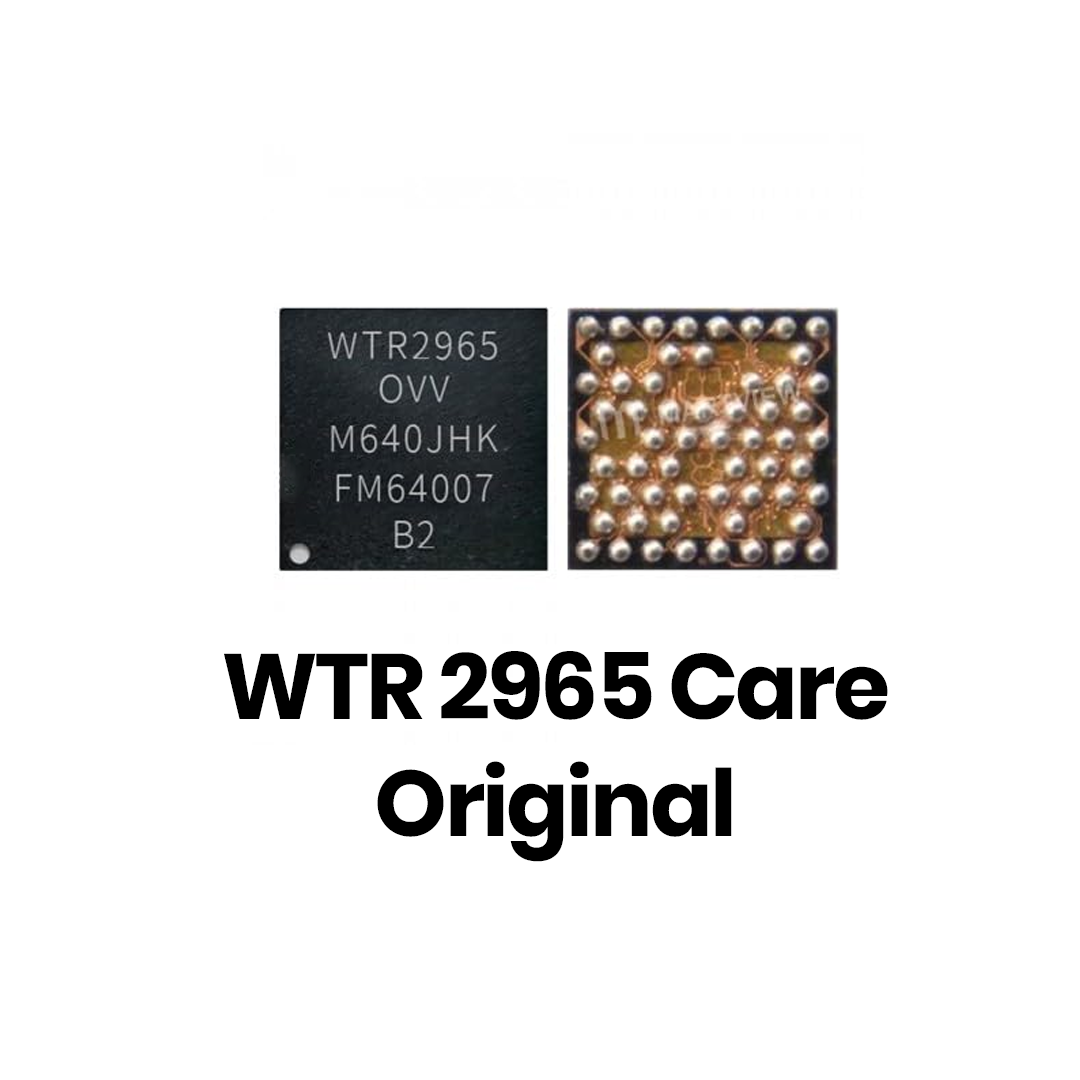

WTR 2965 CARE ORIGNAL Mobile Phone IC
Engineered for Efficiency
The WTR 2965 CARE ORIGNAL Mobile Phone IC is designed to ensure seamless connectivity and peak performance for your mobile device. Built with precision and adhering to high-quality standards, this IC guarantees durability and dependability. WTR 2965 CARE ORIGNAL Mobile Phone IC
Precision and Compatibility
Tailored to work impeccably with a wide range of mobile phones, the WTR 2965 IC optimizes functionality and enhances signal processing. Whether for repairs or upgrades, this IC is a perfect choice for maintaining the integrity of your device. WTR 2965 CARE ORIGNAL Mobile Phone IC
Why Choose the WTR 2965?
With its original design and manufacturer authenticity, the WTR 2965 CARE ORIGINAL IC simplifies repairs, reduces downtime, and extends your phone’s lifespan. Choose this IC for unparalleled performance and value. WTR 2965 CARE ORIGNAL Mobile Phone IC
The WTR2965 is a high-performance Radio Frequency (RF) Transceiver Integrated Circuit (IC) developed by Qualcomm. It serves as a cornerstone of the network architecture in mid-range to high-end smartphones and tablets, primarily acting as the “bridge” between the device’s antenna system and the baseband processor. WTR 2965 CARE ORIGNAL Mobile Phone IC
Often referred to in repair circles as the “Network IC” or “IF (Intermediate Frequency) IC,” its primary job is to handle the modulation and demodulation of signals for 2G, 3G, and 4G LTE networks. WTR 2965 CARE ORIGNAL Mobile Phone IC
WTR2965 Technical Specifications
| Feature | Specification |
| Manufacturer | Qualcomm |
| Part Number | WTR2965 |
| Device Type | RF Transceiver (Direct-conversion) |
| Technology Support | GSM, WCDMA, LTE-FDD, LTE-TDD |
| LTE Categories | Supports up to Cat 4 / Cat 6 (Carrier Aggregation) |
| Receive Chains | 2 (Supports MIMO) |
| Transmit Chains | 2 |
| Package Type | 121-pin Flip-Chip BGA (Ball Grid Array) |
| Dimensions | Approx. 10mm x 10mm |
| Max Data Rate | Up to 300 Mbps (LTE FDD) / 42 Mbps (WCDMA) |
| Operating Voltage | 2.7V to 3.6V (Typical) |
| Max Output Power | +33 dBm (GSM), +23 dBm (LTE/WCDMA) |
| Temperature Range | -40°C to +85°C |
Detailed Description of Functions
The WTR2965 is not just a simple switch; it is a sophisticated signal processor. Below is an in-depth look at its core functionalities and why it is critical for mobile communication.
1. Signal Conversion and Processing
As a direct-conversion transceiver, the WTR2965 converts RF signals from the air directly into baseband signals that the phone’s CPU can understand, and vice versa. It eliminates the need for bulky Intermediate Frequency (IF) filters, which allows modern smartphones to remain slim while supporting a massive array of frequency bands (global roaming). WTR 2965 CARE ORIGNAL Mobile Phone IC
2. Multi-Band & Multi-Mode Support
The “Original Care” WTR2965 is designed to be a universal solution. It supports:
-
4G LTE: Both FDD (Frequency Division Duplex) and TDD (Time Division Duplex) modes.
-
3G/2G: Legacy support for WCDMA and GSM/EDGE.
-
Carrier Aggregation: It can combine multiple frequency blocks to increase data speeds, a hallmark of LTE-Advanced technology.
3. Power Efficiency and Management
In a mobile device, the RF section is one of the highest power consumers. The WTR2965 integrates advanced power management circuits to scale its energy consumption based on signal strength. If you are close to a cell tower, the IC reduces its gain to save battery; if the signal is weak, it optimizes its Low Noise Amplifiers (LNAs) to maintain a stable connection without draining the battery excessively. WTR 2965 CARE ORIGNAL Mobile Phone IC
4. Advanced Antenna Features (MIMO)
By supporting 2×2 MIMO (Multiple Input, Multiple Output), the IC can use two antennas simultaneously to receive data. This significantly improves indoor coverage and download speeds in congested urban environments. WTR 2965 CARE ORIGNAL Mobile Phone IC
Common Applications and Compatibility
The WTR2965 is exceptionally versatile and is found in dozens of popular mobile models from 2017 through the early 2020s.
-
Samsung: Galaxy A9000, J250F, C7000, and several J-series models.
-
Xiaomi/Redmi: Redmi Note 3, Redmi 5A, Redmi 7, Mi Max series.
-
Oppo/Vivo: R9s, A57, Y85, X9i.
-
Others: Huawei P30 Pro, Motorola Moto G7, and even some specialized IoT modules.
Troubleshooting Common Failures
When this IC fails, the phone typically exhibits specific “Network” symptoms. Since the WTR2965 handles the physical link to the cell tower, a malfunction often results in:
-
“No Service” or “Searching” status even with a valid SIM card.
-
Weak Signal: The phone only catches signal when standing directly under a tower.
-
Radio Off: In the phone’s settings, the “Baseband Version” might show as “Unknown.”
-
Heating: The area near the RF section becomes hot during attempted calls.
Technical Note for Repairs
The WTR2965 is a BGA (Ball Grid Array) chip. Replacing it requires professional tools, including a hot air rework station, high-quality flux, and precision tweezers. Because it is a “Care Original” component, it usually comes with pre-leaded solder balls, making the “reballing” process easier for technicians.
