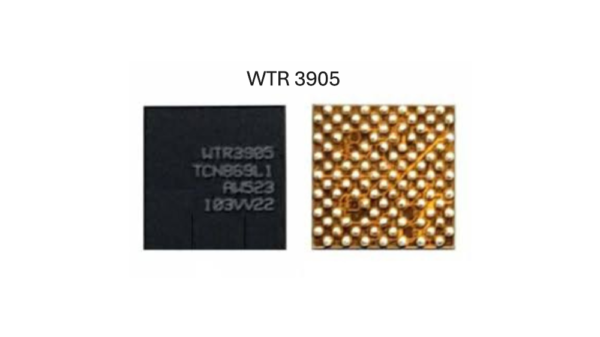

WTR 3905 Mobile Phone IC
Advanced Performance for Seamless Connectivity
The WTR 3905 Mobile Phone IC is engineered to provide exceptional connectivity and optimize your device’s functionality. Designed with precision, it ensures smoother performance, making it an ideal choice for modern mobile devices. WTR 3905 Mobile Phone IC
Compact Design Built for Efficiency
This IC stands out for its compact size without compromising on efficiency. It is tailored to contribute to lower power consumption and improved overall system performance, ensuring longer battery life for your device. WTR 3905 Mobile Phone IC
Versatile Compatibility and Superior Reliability
The WTR 3905 is compatible with a wide range of mobile platforms, making it versatile and adaptable to various applications. Built with high-quality materials, it guarantees reliability and durability for long-term use. WTR 3905 Mobile Phone IC
The Qualcomm WTR3905 is a highly integrated RF (Radio Frequency) transceiver IC that serves as a critical bridge between a mobile device’s antenna and its baseband processor (Snapdragon). It is primarily responsible for the “air interface”—converting high-frequency radio signals from the air into digital data the phone can process, and vice versa. WTR 3905 Mobile Phone IC
Below are the full specifications and a detailed description of its role in modern mobile architecture. WTR 3905 Mobile Phone IC
Technical Specifications Table
| Feature | Specification |
| Manufacturer | Qualcomm Technologies, Inc. |
| IC Category | RF Transceiver / Front-End Module |
| Architecture | Direct-conversion (Zero-IF) |
| Supported Networks | 4G LTE (FDD/TDD), 3G WCDMA/HSPA+, 2G GSM/EDGE |
| Receive (Rx) Chains | 1 to 2 (Depending on specific sub-variant) |
| Transmit (Tx) Chains | 1 to 2 (Depending on specific sub-variant) |
| Max Data Rate (LTE) | Up to 150 Mbps (Cat 4) or 300 Mbps (Cat 6) |
| Output Power (Max) | +23 dBm (LTE/WCDMA), +33 dBm (GSM) |
| Typical Current | 250 mA – 400 mA (Active Mode) |
| Package Type | 48-pin or 121-pin Flip-Chip BGA |
| Dimensions | 5×5 mm or 10×10 mm (Variant dependent) |
| Key Features | Carrier Aggregation, MIMO support, Integrated Synthesizer |
Detailed Description
1. Core Functionality
The WTR3905 is the “ears and mouth” of a smartphone. While the main processor (CPU) handles apps and the UI, the WTR3905 handles the physics of communication.
-
Down-conversion: It takes the high-frequency 4G or 3G signals (ranging from 700 MHz to 2.7 GHz) and converts them down to a baseband frequency that the modem can understand.
-
Up-conversion: When you send a text or upload a video, it takes the digital data and “modulates” it onto a high-frequency radio wave for transmission.
2. Multi-Band & Multi-Standard Support
One of the WTR3905’s greatest strengths is its versatility. In the past, phones required separate chips for different regions (e.g., one for Europe and one for the US). The WTR3905 supports a massive array of LTE bands (B1–B5, B7–B20, B25, B30, etc.), allowing manufacturers to design “world phones” that work on almost any global carrier. It seamlessly switches between 4G LTE, 3G WCDMA, and 2G GSM depending on available signal strength. WTR 3905 Mobile Phone IC
3. Advanced Technologies: MIMO and Carrier Aggregation
To achieve high-speed internet, the WTR3905 utilizes:
-
Carrier Aggregation (CA): This allows the IC to “combine” different frequency bands to increase bandwidth, essentially turning a two-lane highway into a four-lane highway for data.
-
MIMO (Multiple Input, Multiple Output): By using multiple receive chains, the chip can process multiple data streams simultaneously, significantly improving stability and speed in crowded areas.
4. Power Efficiency and Thermal Management
In mobile design, space and battery are the two most precious resources. The WTR3905 is designed with a Direct-conversion architecture, which eliminates the need for bulky Intermediate Frequency (IF) filters. This reduces the physical footprint on the motherboard and lowers power consumption. Its BGA (Ball Grid Array) packaging is specifically engineered to dissipate heat quickly, preventing the phone from overheating during long video calls or intensive data usage. WTR 3905 Mobile Phone IC
5. Common Faults and Repairs
The WTR3905 is a common subject of “chip-level” repairs in service centers. Because it is directly connected to the antenna system, it is often the first component to suffer if there is an electrical surge or liquid damage. WTR 3905 Mobile Phone IC
-
Symptoms of Failure: No Service, “Searching…” indefinitely, weak Wi-Fi/LTE signal, or the “Baseband Unknown” error in device settings.
-
Repairability: Since it is a BGA chip, it requires professional “reballing” or replacement using a hot-air rework station.
